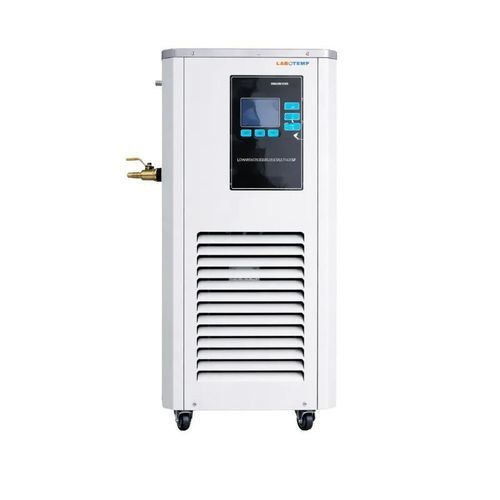

Benchtop laboratory chiller LMC-101

compactair-cooledfor rotary evaporators

Product overview
Labotemp laboratory circulating chiller LMC-101 is a compact mini chiller designed for reliable low-temperature liquid circulation in laboratory and light industrial applications. With a cooling range down to -10°C and a 5 L reservoir, it maintains stable temperatures for sample cooling, instrument protection and reaction control. The air-cooled unit incorporates a closed compressor system and microcomputer temperature control for precise regulation and simple operation.

Design & operation
The LMC-101 features a hermetic compressor, microcomputer-based PID temperature control and an air-cooled condenser to optimize heat dissipation. Integrated protection functions (overcurrent, high/low temperature, low-water) enable safe continuous operation and reduce downtime. The unit delivers stable performance across variable loads and mounting configurations.

Key benefits

• Consistent low-temperature circulation for repeatable laboratory processes.
• Accurate temperature control with rapid response to setpoint changes.
• Compact footprint and 5 L reservoir suitable for bench-top or limited-space installations.

Features

• Temperature range: -10°C to room temperature.
• Flow rate: 20 L/min and pressure ≤0.4 MPa for steady coolant delivery.
• Lifting head: 4–6 m to support circulation across height differences.
• Power: 220 V 50 Hz; compact dimensions: 500×370×540 mm.

Applications

• Cooling reaction vessels, condensers and analytical instruments in chemical and biological laboratories.
• Use with rotary evaporators, vacuum systems and small-scale process cooling.
• Protection of heat-sensitive equipment in research, QC and pilot-scale setups.

Technical specifications

• Model: LMC-101
• Temperature range: -10°C to RT
• Volume: 5 L
• Voltage: 220 V 50 Hz
• Pressure: ≤0.4 MPa
• Flow: 20 L/min
• Lifting head: 4–6 m
• Dimensions: 500×370×540 mm
• Gross weight: 65 kg
• Package size: 430×600×900 mm
