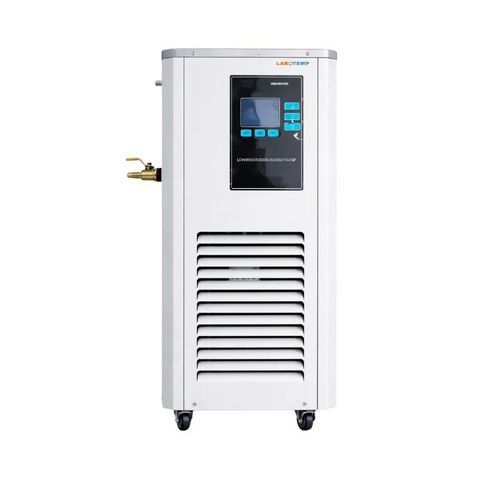

Compact laboratory chiller LMC-103

circulatingfor rotary evaporatorsair-cooled

Product Overview
Labotemp Chiller Machine LMC-103 is a high-performance mini chiller engineered for advanced laboratory applications requiring temperatures as low as -40°C. It is ideal for low-temperature reactions, material testing, and sensitive sample handling where precise and stable cooling is critical. The 5L circulation system ensures uniform cooling and consistent performance across extended operation.

This small chiller integrates a high-efficiency compressor with intelligent temperature control to deliver accurate and stable cooling. The air-cooled design ensures effective heat management, while built-in safety features protect equipment and samples during continuous use. As a reliable water chiller, it provides dependable performance for laboratories and industrial processes requiring deeper cooling and consistent thermal control.

Key Features

• Compact 5L design for space-saving laboratory setups.
• Wide temperature range from −40°C to room temperature for versatile applications.
• Accurate temperature control via intelligent control system for stable thermal regulation.
• Designed for reliable continuous operation in long-duration workflows.
• Robust construction for durability and consistent performance.
• Pressure capability ≤0.4MPa with a consistent coolant flow of 20 L/min.
• Lifting head of 4–6 m to support circulation across various equipment.
• Air-cooled design and integrated high-efficiency compressor.

Applications

• Controlled cooling for low-temperature chemical reactions, sample stabilization, and instrument thermal protection in research and quality control laboratories.
• Suitable for use with rotary evaporators, condensers, vacuum systems, and small-scale pharmaceutical or biochemical processes requiring stable low-temperature circulation.

Technical Table
Model : LMC-103
Volume : 5L
Temperature range : -40°C to RT
Voltage : 220 / 50Hz
Pressure : ≤0.4MPa
Flow : 20 L/min
Lifting Head : 4–6 m
Dimension : 680×650×780mm

Caractéristiques / spécifications techniques

• Model: LMC-103
• Volume: 5 L circulation
• Temperature range: -40°C to room temperature
• Voltage: 220 / 50Hz
• Pressure: ≤0.4 MPa
• Flow rate: 20 L/min
• Lifting head: 4–6 m
• Dimensions (W×D×H): 680×650×780 mm
• Air-cooled system with high-efficiency compressor
• Intelligent temperature control for accurate and stable cooling
• Designed for reliable continuous long-duration operation
• Built-in safety features to protect equipment and samples
• Suitable for rotary evaporators, condensers, vacuum systems, and small-scale laboratory processes
