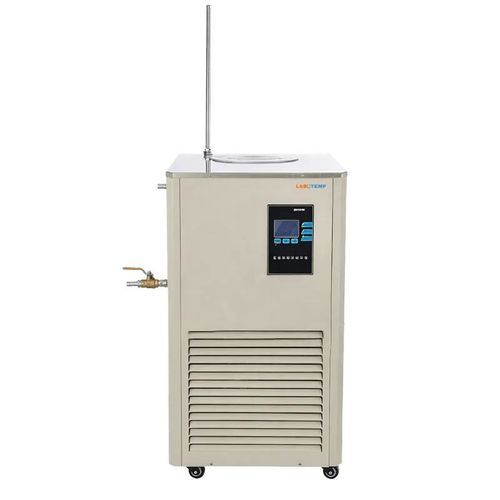

Compact laboratory chiller LMC-108

mobileon casterscirculating

Product overview
Labotemp LMC-108 is an ultra-low temperature chiller designed for laboratory and pilot-scale industrial applications that require reliable cooling down to −120°C. With a 10 L reservoir and air-cooled configuration, it provides continuous closed-loop cooling for cryogenic processes, sample conditioning and instrument temperature control where stable long-term operation is essential.

Performance & design
A high-performance compressor combined with intelligent temperature control delivers precise, stable regulation across the operating range. Air-cooled heat rejection optimizes thermal efficiency and simplifies installation. Integrated safety protections and low-vibration operation support continuous duty cycles and compatibility with external laboratory systems.

Key advantages

• Cooling capacity down to −120°C for cryogenic and ultra-low temperature processes
• 10 L reservoir enabling extended circulation and reduced refill frequency
• Compact vertical footprint with mobility support for flexible lab placement

Features

• −120°C cryogenic cooling
• Wide operating range down to −20°C for versatile low-temperature workflows
• 10 L reservoir volume
• Stable coolant delivery with optimized flow for consistent thermal exchange
• Compact vertical design with casters for easy placement
• Low vibration operation for equipment stability during continuous use
• Compatible with external closed-loop laboratory systems

Applications

• Continuous low-temperature circulation for chemical synthesis, sample conditioning and instrument cooling
• Use with rotary evaporators, condensers and vacuum systems
• Pilot-scale pharmaceutical and biotech processes requiring stable low-temperature control and uniform heat exchange

Technical specifications

• Model: LMC-108
• Volume: 10 L
• Temperature range: −120°C to RT
• Voltage: 380 V
• Pressure: < 0.4 MPa
• Lifting head: 4 – 6 m
• Dimensions (mm): 950 × 710 × 940 mm
