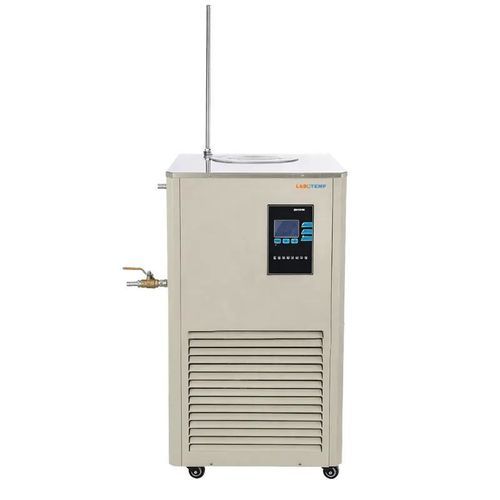

Compact laboratory chiller LMC-105

mobilefor rotary evaporatorsrecirculating

Product description
Labotemp LMC-105 recirculating chiller is a compact, air-cooled liquid circulation unit for laboratory and industrial applications. With a temperature range down to −20°C and a 10 L reservoir, it provides stable, uniform cooling for reaction temperature control, sample conditioning and equipment protection during extended duty cycles. The unit integrates a sealed compressor, microcomputer temperature control and safety components to support continuous, reliable operation.

Key benefits

• Consistent low-temperature control down to −20°C for repeatable process conditions
• Accurate microcomputer temperature regulation for tight thermal stability
• Compact footprint with mobility support for flexible placement in labs and pilot stations

Features

• Smooth coolant flow for reliable closed-loop circulation
• Wide operating range to −20°C to accommodate low-temperature workflows
• 10 L reservoir reduces refill frequency for extended runs
• Optimized flow performance for stable heat exchange
• Vertical compact design with low-vibration operation
• Air-cooled system for effective heat dissipation
• Compatible with external lab systems (rotary evaporators, condensers, vacuum setups)

Applications

• Continuous low-temperature circulation for chemical synthesis, sample conditioning and instrument cooling
• Integration with rotary evaporators, condensers and vacuum systems
• Pilot-scale pharma and biotech processes requiring stable −20°C control and uniform heat exchange during extended cycles

Specifications

• Model: LMC-105
• Volume: 10 L
• Temperature range: -20°C to RT
• Voltage: 220 V 50 Hz
• Pressure: < 0.4 MPa
• Lifting head: 4–6 m
• Dimensions (mm): 550 × 420 × 680
• Cooling capacity: 2324 W
• Gross weight: 75 kg
• Package size: 620 × 500 × 940 mm
