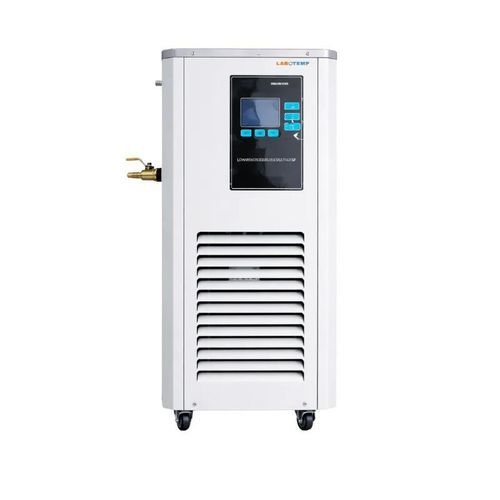

Compact laboratory chiller LMC-102

circulatingfor rotary evaporatorsair-cooled

Product description
Labotemp Chiller Machine LMC-102 is a compact air-cooled laboratory chiller designed for precise low-temperature liquid circulation. With a cooling range down to -25°C and a 5 L circulation volume, it supports chemical reactions, sample conditioning and equipment cooling where stable thermal control is required. The circulation system ensures consistent flow and uniform temperature distribution for routine and moderately demanding lab processes.

Design and operation
Engineered for reliability, the unit integrates a sealed compressor and microcomputer-based temperature control for accurate regulation and straightforward operation. The air-cooled heat exchanger optimizes dissipation, while built-in safety components protect against over-temperature, over-pressure and electrical fluctuations. Suitable for continuous laboratory use with energy-efficient performance.

Why choose Labotemp Chiller Machine LMC-102?

• Precision temperature control via microcomputer system
• Air-cooled design for continuous operation and efficient heat dissipation
• Sealed compressor and safety protections for reliable laboratory use

Features

• Microcomputer temperature control
• 5 L circulation volume for stable cooling
• Temperature range: -25°C to RT
• Maximum pressure: < 0.4 MPa
• Flow rate: 20 L/min
• Lifting head: 4–6 m
• Voltage: 220 V 50 Hz
• Dimensions (W × D × H): 500 × 370 × 640 mm
• Air-cooled system with sealed compressor

Applications

• Controlled cooling for low-temperature chemical reactions, sample stabilization and instrument protection in research and QC laboratories
• Connection to rotary evaporators, condensers, vacuum systems and small-scale pharmaceutical or biochemical processes requiring stable temperature and flow

Technical specifications

• Model: LMC-102
• Temperature range: -25°C to RT
• Circulation volume: 5 L
• Voltage: 220 V 50 Hz
• Maximum pressure: < 0.4 MPa
• Flow rate: 20 L/min
• Lifting head: 4–6 m
• Dimensions (W × D × H): 500 × 370 × 640 mm
• Cooling system: Air-cooled
• Control: Microcomputer-based
• Compressor: Sealed compressor
