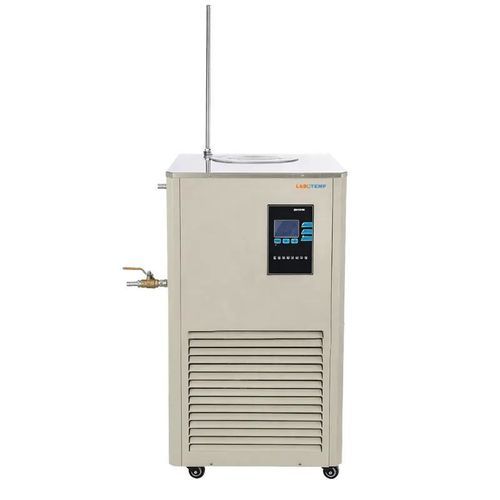

Compact laboratory chiller LMC-106

mobilecirculatingrecirculating

Product overview
Labotemp LMC-106 is a compact laboratory chiller designed for controlled low-temperature applications down to −30 °C. The 10 L reservoir provides continuous fluid circulation for laboratory processes such as chemical reactions, sample conditioning and instrument cooling. The unit is intended for medium-demand workflows and extended operating cycles that require stable temperature control and repeatable performance.

Design and performance
The LMC-106 integrates a compressor with intelligent temperature control for precise and responsive regulation. Air-cooled construction improves heat dissipation and system efficiency. Built-in safety protections guard against operational fluctuations during long-duration use. The vertical compact layout with mobility options facilitates placement in laboratories and pilot setups while low-vibration operation supports equipment stability.

Key benefits

• Precise temperature stability via intelligent control to minimize fluctuations
• Energy-efficient operation to reduce power consumption
• Stable circulation design supporting continuous closed-loop cooling

Features

• Long-term operation support
• Wide operating range down to −30 °C for low-temperature processes
• 10 L reservoir to reduce refill frequency
• Stable coolant delivery with optimized flow for consistent thermal exchange
• Compact vertical design with mobility support for easy placement
• Low vibration operation to enhance system stability
• Compatibility with external systems requiring continuous closed-loop cooling

Applications

• Continuous low-temperature circulation for chemical synthesis, sample conditioning and instrument cooling
• Suitable for rotary evaporators, condensers and vacuum systems
• Applicable to pilot-scale pharmaceutical and biotech processes requiring uniform low-temperature control during extended duty cycles

Technical specifications

• Model: LMC-106
• Volume: 10 L
• Temperature range: -30 °C to RT
• Voltage: 220 V 50 Hz
• Pressure: < 0.4 MPa
• Lifting head: 4–6 m
• Dimensions (mm): 580 × 450 × 680
