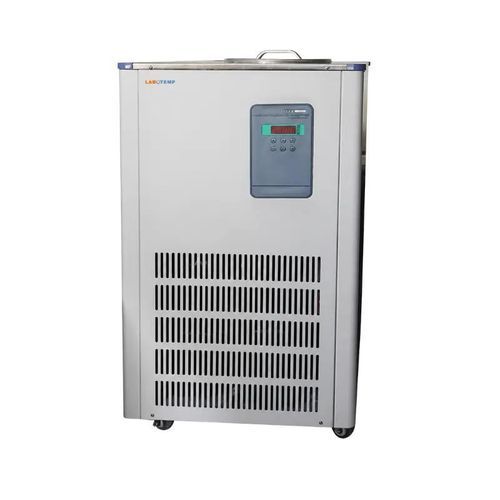

Air-cooled water chiller LIC-303

Overview
Labotemp Industrial Water Chiller LIC-303 is a recirculating cooling system engineered for laboratory and industrial processes that require precise ultra-low temperature control. With a 50 L reservoir and operating down to -80°C, the LIC-303 provides stable, closed-loop cooling suited to chemical synthesis, material testing, vacuum systems, and long-duration research workflows. Closed-loop circulation ensures uniform temperature distribution and sample protection during extended runs.

Design & Operation
Designed for continuous industrial use, the LIC-303 integrates an air-cooled compressor with a microprocessor-based control system for accurate temperature regulation. Digital display and adjustable flow control enable precise monitoring and adaptation to varied process requirements. Built-in protections (overload, system safeguards) and stable operation controls improve reliability, while energy-efficient components support prolonged duty cycles.

Key Benefits

• Ultra-low temperature capability: reliable operation to -80°C
• Consistent closed-loop temperature control for sensitive processes
• Optimized for continuous use with energy-efficient performance

Features

• Low-noise operation suitable for lab/industrial environments
• Lifting head range: 10–12 m for multi-level circulation setups
• Stable flow: 30 L/min for consistent coolant delivery
• Dual voltage support: 220V / 380V for flexible installation
• 50 L tank capacity for medium to large-scale operations
• Low system pressure (<0.4 MPa) to enhance safety and longevity
• Space-efficient structural design for compact installation
• Pipeline compatibility for integration with external equipment
• Engineered for continuous-duty operation under controlled load

Applications

• Closed-loop cooling for temperature control of reactors, condensers and heat exchangers (operational to -20°C and below in specific configurations)
• Continuous circulation in chemical synthesis, pilot processing and analytical systems
• Pharmaceutical labs, research institutes and industrial quality control for long-duration experiments

Table - Core Specifications
Model: LIC-303
Volume: 50 L
Temperature Range: -80°C to RT
Voltage: 380V
Pressure: <0.4 MPa
Flow: 30 L/min
Lifting Head: 10–12 m
Dimension: 900 × 700 × 1140 mm

Technical specifications

• Model: LIC-303
• Volume: 50 L
• Temperature Range: -80°C to RT
• Voltage: 380V (supports 220V/380V configurations)
• System Pressure: <0.4 MPa
• Flow Rate: 30 L/min
• Lifting Head: 10–12 m
• Dimensions (L×W×H): 900 × 700 × 1140 mm
