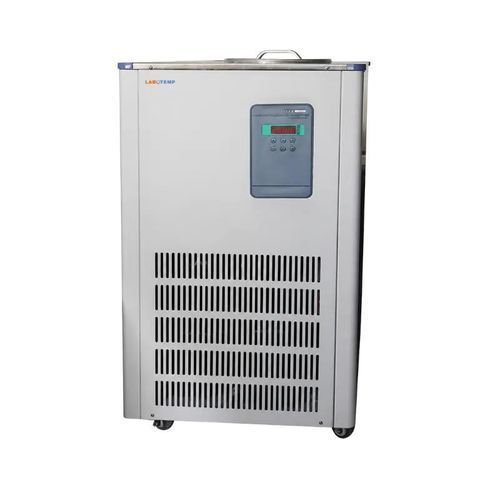

Air-cooled water chiller LIC-306

Product overview
Labotemp Industrial water chiller LIC-306 is a recirculating, air-cooled unit designed for continuous low-temperature cooling in industrial and laboratory environments. With a 100 L reservoir and temperature control down to -40°C, the LIC-306 provides stable thermal conditions for chemical processing, pharmaceutical production, material testing, and precision instrumentation cooling. The system maintains uniform coolant flow to minimize temperature fluctuations across large-volume applications.

Design and operation
The LIC-306 integrates an efficient refrigeration cycle with an intelligent control interface for accurate setpoint management and monitoring. Built for extended operation, the unit features protection functions to prevent overpressure and thermal anomalies and is engineered for reliable hydraulic performance. Compact cabinet dimensions and optimized energy use facilitate integration into plant layouts and continuous production lines.

Key selling points

• Temperature capability down to -40°C for deep-cooling processes
• Continuous operation designed for long, uninterrupted runs
• Intelligent control system for precise monitoring and adjustment

Features

• Stable cooling output for consistent process conditions
• High circulation capacity: 40 L/min for reliable fluid transfer in larger systems
• Lifting head 10–12 m to support multi-point and elevated distribution
• Large 100 L reservoir suitable for continuous, high-load use
• Low operating pressure (<0.4 MPa) to enhance system safety and longevity
• 380 V industrial power supply compatibility
• Cabinet dimensions optimized for space-efficient installation (1100 × 900 × 1100 mm)
• Designed for integration with high-capacity external equipment and pipelines
• Engineered for long-duration runs with consistent hydraulic performance

Applications

• Continuous low-temperature circulation in chemical reactors, pilot-scale synthesis and process cooling where stable flow (40 L/min) and controlled pressure are critical
• Heat dissipation and temperature control for analytical instruments, vacuum systems and GMP laboratories requiring scalable fluid handling

Technical specifications

• Model: LIC-306
• Volume: 100 L
• Temperature range: -40°C to RT
• Voltage: 380 V
• Pressure: <0.4 MPa
• Flow: 40 L/min
• Lifting head: 10–12 m
• Dimensions: 1100 × 900 × 1100 mm
