Floor-standing laboratory chiller LIC-308

circulatingfor rotary evaporatorsair-cooled

Product Overview

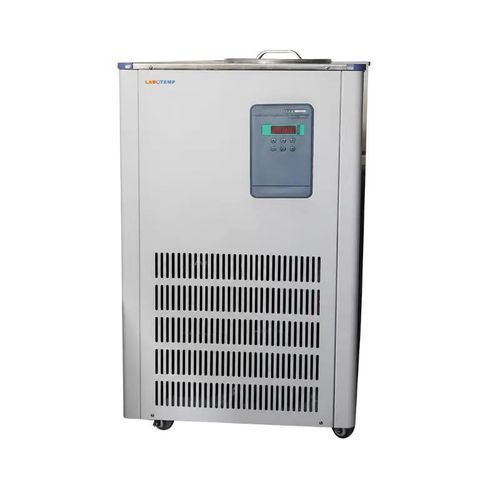

Labotemp Industrial Water Chiller LIC-308 is a high-capacity air-cooled chiller with a 100 L reservoir and an ultra-low temperature capability down to -120°C. The unit integrates a high-efficiency refrigeration circuit with microprocessor-based control for precise temperature regulation, stable coolant circulation and adjustable flow. It is engineered for continuous industrial operation with effective heat dissipation and a digital interface for real-time monitoring of temperature, flow and system status.

Intended Use & Key Benefits
This chiller is intended for applications requiring ultra-low and stable temperatures such as cryogenic research, pharmaceutical processing, advanced chemical reactions and material testing. It supports direct integration with reactors, rotary evaporators and vacuum equipment, providing consistent cooling performance and operational protection. Built-in protections include overload shutdown, pressure stability control and system diagnostics to secure long-duration workflows.

Why Choose LIC-308?

• Ultra-low temperature capability: reliable cooling down to -120°C for critical processes
• Stable flow & pressure control: ensures uniform cooling across connected equipment
• Comprehensive monitoring: real-time parameters for safe and accurate operation

Features

• -120°C cryogenic cooling
• High circulation capacity: 40 L/min for stable transfer in larger systems
• Extended lifting head: 10–12 m for multi-point and elevated setups
• Large 100 L reservoir suitable for continuous and high-load use
• Low operating pressure (<0.4 MPa) to improve safety and longevity
• 380 V industrial power compatibility
• Optimized cabinet dimensions for industrial space utilization
• Designed for integration with high-capacity external equipment and pipelines
• Suitable for prolonged operation with consistent hydraulic performance

Applications

• Continuous low-temperature circulation in chemical reactors, pilot-scale synthesis and process cooling where stable flow (40 L/min) and controlled pressure are critical
• Heat dissipation and temperature control in analytical instruments, vacuum systems and GMP laboratories requiring consistent thermal management and scalable fluid handling

Specifications
Model: LIC-308
Volume: 100 L
Temperature Range: -120°C to RT
Voltage: 380 V
Pressure: <0.4 MPa
Flow: 40 L/min
Lifting Head: 10–12 m
Dimensions (W×D×H): 1460 × 1200 × 1350 mm

Caractéristiques / Spécifications techniques

• Model: LIC-308
• Reservoir Volume: 100 L
• Temperature Range: -120°C to RT
• Rated Voltage: 380 V
• Maximum Operating Pressure: <0.4 MPa
• Circulation Flow: 40 L/min
• Lifting Head: 10–12 m
• External Dimensions (W×D×H): 1460 × 1200 × 1350 mm
