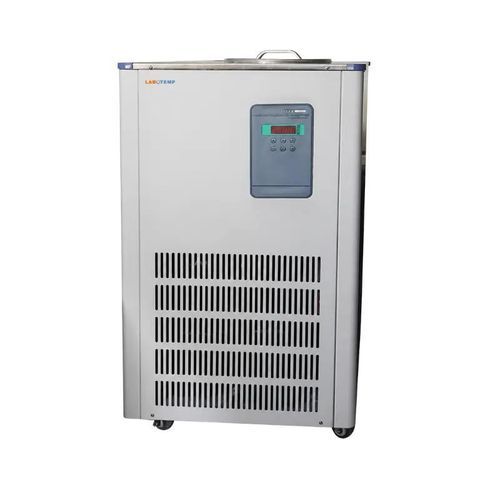

Floor-standing laboratory chiller LIC-305

compactintegrated modulecirculating

Product overview
Labotemp Industrial Water Chiller LIC-305 is an air-cooled recirculating chiller with a 100 L reservoir, providing stable cooling down to -30°C for laboratory and industrial temperature-control tasks such as rotary evaporators, chemical reactors, vacuum systems and large analytical installations. The unit integrates a high-efficiency air-cooled compressor, microprocessor control and a digital interface for precise temperature regulation and real-time monitoring. Designed for continuous operation with multiple safety protections to reduce downtime.

Key functional description
The LIC-305 ensures uniform coolant circulation via a recirculating pump to maintain consistent thermal conditions during extended runs. It supports integration with high-capacity external equipment and pipelines and enables elevated or multi-point setups through an extended lifting head. Low operating pressure and industrial voltage compatibility make it suitable for demanding process-cooling environments.

Features

• Air-cooled system
• Circulation flow: 40 L/min for stable fluid transfer in larger systems
• Extended lifting head: 10–12 m for multi-point and elevated installations
• Large 100 L reservoir for continuous, high-load applications
• Low operating pressure (<0.4 MPa) for enhanced safety
• 380V industrial power compatibility
• Compact cabinet dimensions for efficient space utilization
• Designed for integration with high-capacity external equipment and pipelines
• Suitable for long-duration operation with consistent hydraulic performance

Applications

• Continuous low-temperature circulation in chemical reactors, pilot-scale synthesis and process cooling where stable flow (40 L/min) and controlled pressure are required
• Heat dissipation and temperature control for analytical instruments, vacuum systems and GMP laboratory processes

Technical specifications

• Model: LIC-305
• Volume: 100 L
• Temperature range: -30°C to room temperature
• Voltage: 380V
• Pressure: <0.4 MPa
• Flow: 40 L/min
• Lifting head: 10–12 m
• Dimensions (W × D × H): 1100 × 900 × 1100 mm
• Cooling type: Air-cooled, recirculating
• Reservoir: Large-capacity tank for continuous/high-load applications
• Control: Microprocessor-controlled system with digital interface for real-time monitoring
• Safety: Overload protection and system safeguards for reliable continuous operation
• Intended use: Laboratory and industrial temperature control for rotary evaporators, reactors, vacuum systems and large analytical setups
