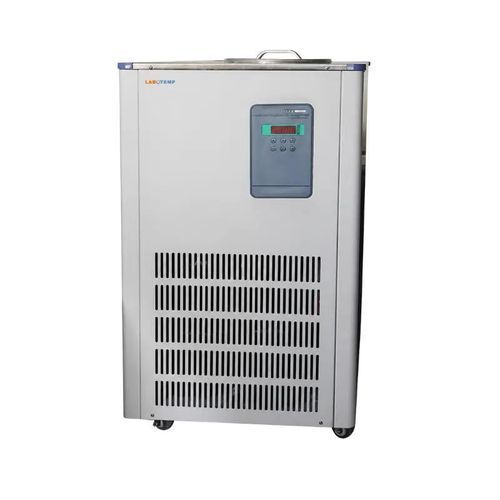

Air-cooled water chiller LIC-307

Overview
The Labotemp recirculating air‑cooled industrial chiller LIC-307 delivers controlled low‑temperature circulation for laboratory and industrial processes. Featuring a 100 L reservoir and the ability to reach -80°C, the unit maintains a stable coolant flow via recirculation, making it suitable for chemical processing, pharmaceutical R&D, materials testing and other temperature‑sensitive applications.

Performance and Design
Built for continuous operation, the LIC-307 integrates an efficient refrigeration circuit with microprocessor temperature control and a digital interface for monitoring and setpoint adjustment. The system offers reliable long‑cycle performance with overload protection, system diagnostics and pressure control (operating pressure <0.4 MPa). The air‑cooled design and optimized cabinet dimensions support installation in industrial environments.

Why Choose LIC-307?

• Ultra‑low temperature capability to -80°C
• Large 100 L reservoir for extended runs and high thermal inertia
• Stable hydraulic performance: 40 L/min flow and 10–12 m lifting head for multi‑point distribution

Features

• 100 L recirculating reservoir suitable for continuous process cooling
• Nominal flow: 40 L/min for integration with high‑capacity systems
• Lifting head: 10–12 m to support elevated or multi‑point setups
• Low operating pressure (<0.4 MPa) to enhance system safety
• 380 V industrial power compatibility
• Optimized cabinet dimensions for efficient floor use: 1260 × 1100 × 1350 mm
• Designed for integration with external high‑capacity equipment and pipelines

Applications

• Continuous low‑temperature circulation in chemical reactors, pilot syntheses and process cooling where stable flow and controlled pressure are required
• Heat dissipation and temperature control for analytical instruments, vacuum systems and GMP laboratories

Technical specifications

• Model: LIC-307
• Reservoir volume: 100 L
• Temperature range: -80°C to RT
• Voltage: 380 V
• Pressure: <0.4 MPa
• Flow: 40 L/min
• Lifting head: 10–12 m
• Dimensions (W×D×H): 1260 × 1100 × 1350 mm
