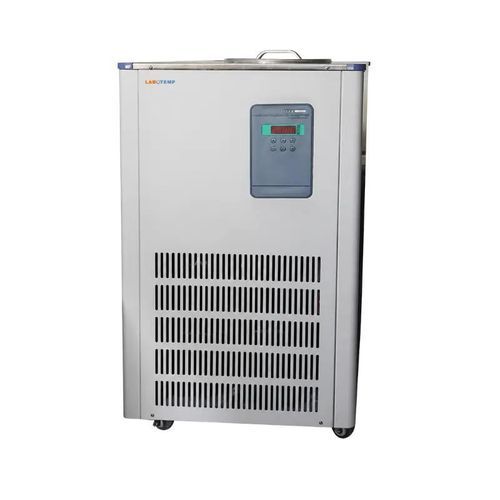

Compact laboratory chiller LIC-301

circulatingfor rotary evaporatorsair-cooled

Product Overview
Labotemp Industrial water chiller LIC-301 is a closed-loop, air-cooled chiller designed for continuous-duty laboratory and industrial cooling. The unit features a 50 L reservoir and precise temperature control down to -20°C, providing stable, uniform circulation for rotary evaporators, reactors, condensers and other temperature-sensitive equipment.

Design & Operation
The LIC-301 is built for sustained operation with an air-cooled compressor, microprocessor-based digital temperature controller and adjustable flow control. Safety and reliability are ensured via overload protection and system safeguards. Dual voltage support (220V / 380V) and a compact footprint enable flexible installation in diverse process environments.

Why Choose LIC-301?

• Closed-loop cooling to -20°C for sensitive processes
• Continuous-duty design with energy-efficient air-cooled compressor
• 50 L tank and 30 L/min flow for medium to large circulation needs

Features

• Microprocessor digital temperature control with clear display
• Adjustable flow control, stable flow rate 30 L/min
• Lifting head 10–12 m for multi-level circulation setups
• Low system pressure (<0.4 MPa) for enhanced safety
• Dual voltage configuration (220V / 380V) for installation flexibility
• Compact dimensions (650×550×950 mm) for space-efficient placement
• Pipeline compatibility for integration with external equipment

Applications

• Closed-loop temperature control for reactors, condensers and heat exchangers down to -20°C
• Continuous circulation in chemical synthesis, pilot processing and analytical workflows
• Pharmaceutical laboratories, research institutes and industrial QC requiring long-term thermal stability

Specifications (table)
Model : LIC-301
Volume : 50 L
Temperature Range : -20°C to RT
Voltage : 220V 50Hz (options: 220V / 380V)
Pressure : <0.4 MPa
Flow : 30 L/min
Lifting Head : 10–12 m
Dimension : 650×550×950 mm

Characteristics / technical specifications

• Model: LIC-301
• Volume: 50 L
• Temperature Range: -20°C to RT
• Voltage: 220V 50Hz (configurable to 380V)
• System Pressure: <0.4 MPa
• Flow Rate: 30 L/min
• Lifting Head: 10–12 m
• Dimensions (W×D×H): 650×550×950 mm
• Cooling Type: air-cooled compressor
• Control: microprocessor digital controller with display
• Flow Adjustment: yes
• Safety: overload protection and system safeguards
• Design: continuous-duty operation and pipeline compatibility for integration
