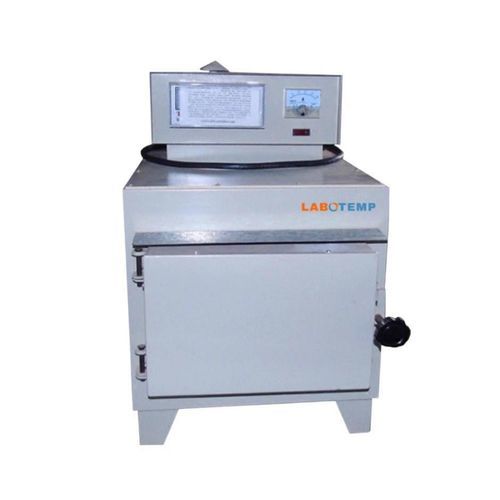

Dental furnace FDB-01

calcinationburnoutpreheating

Overview
Labotemp Burnout Furnace FDB-01 is a box-type resistance furnace for dental laboratories and jewelry casting, designed for reliable wax burnout and controlled heat treatment. Rated to 1000°C with a 4,000W heater, it reaches operating temperature within ≤ 60 minutes. The compact chamber (30 × 20 × 12 cm), 8 kWh heat storage and low standby power loss (≤ 1.2 kWh) deliver energy-efficient, uniform results with temperature uniformity ≤ 15°C.

Control and construction
The furnace is fitted with a KSW-type controller and a precision thermocouple to ensure stable, repeatable temperature profiles. Box-type resistance construction provides long duty cycles with low maintenance, suitable for continuous lab workflows, porcelain processing and jewelry casting preparation.

Key benefits

• Fast heating: 4,000W power and ≤ 60 minutes heat-up time to increase throughput
• Precise control: KSW controller and precision thermocouple for repeatable cycles
• Energy efficiency: 8 kWh heat storage with low standby loss (≤ 1.2 kWh)
• Laboratory-ready: compact footprint, durable materials and low maintenance for daily use

Functional features / Uses

• Rapid wax elimination for dental and jewelry burnout cycles
• Preheating and mold preparation for casting
• Porcelain processing and small-part heat treatment
• General laboratory calcination and thermal testing

Specifications
Temperature rating: 1000°C
Power consumption: 4,000W
Heating time: ≤ 60 mins
Power loss: ≤ 1.2 kWh
Heat storage capacity: 8 kWh
Temperature uniformity: ≤ 15°C
Chamber size: 30 × 20 × 12 cm
Voltage: 220V, 50Hz
Net weight: 82 kg
Gross weight: 85 kg
Package size: 650 × 440 × 515 mm

Applications

• Dental laboratories: wax burnout and porcelain processing
• Jewelry casting: burnout and mold preheating
• Laboratory thermal treatments: calcination and small-part heat treatment

Technical specifications

• Model: FDB-01
• Maximum temperature: 1000°C
• Rated power: 4,000W
• Heating time: ≤ 60 minutes
• Power loss: ≤ 1.2 kWh
• Heat storage capacity: 8 kWh
• Temperature uniformity: ≤ 15°C
• Chamber internal dimensions: 30 × 20 × 12 cm
• Voltage: 220V, 50Hz
• Net weight: 82 kg
• Gross weight: 85 kg
• Control: KSW-type controller with precision thermocouple
