Dental furnace FDZ-06

sinteringfor scientific researchfor general applications

Product Description

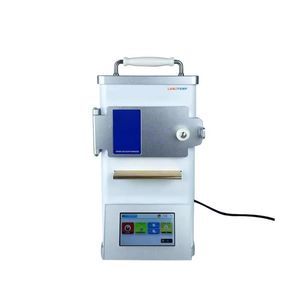

Labotemp Zirconia Sintering Furnace FDZ-06 is a dental sintering furnace designed for precise sintering of zirconia crowns, bridges, veneers and ceramic restorations. The furnace reaches a maximum temperature of 1630°C and supports up to 70 units per cycle. Its annular chamber and ultrapure heating elements provide uniform, contamination-free sintering suitable for dental laboratories and ceramic production.

Control & Connectivity
The FDZ-06 integrates a 14-bit AD temperature control with ±1°C accuracy and an industrial-grade anti-knock touch screen with programmable sintering programs and real-time monitoring. Mobile Internet and IoT connectivity enable intelligent fault detection and remote status monitoring to improve uptime and process reliability.

Why choose Labotemp Zirconia Furnace FDZ-06?

• Ultra-high maximum temperature: 1630°C
• Efficient sintering cycle: approx. 150 minutes for crowns and bridges
• Smart monitoring via Mobile Internet & IoT
• High throughput: up to 70 units per cycle

Features

• Annular chamber for excellent temperature uniformity
• Ultrapure, pollution-free heating elements
• Precise 14-bit AD temperature control (±1°C)
• Industrial-grade anti-knock touch screen with programmable programs
• Fast sintering of crowns and bridges (~150 minutes)
• Large chamber (Φ116 mm × 130 mm)
• Programmable start time for flexible operation
• 5F Pro option with four heating rods for faster heating
• Net weight 110 kg, gross weight 112 kg

Applications

• Precise sintering of zirconia crowns, bridges, veneers and ceramic restorations
• Dental laboratories, research centers and ceramic manufacturing units

Specifications
Maximum Temperature: 1630°C
Capacity: Up to 70 units per cycle
Firing Chamber Size: Φ116 mm × 130 mm
Voltage: 220V, 50Hz
Chamber Type: Annular chamber for excellent temperature uniformity
Touch Screen: Industrial-grade anti-knock touch screen
Status Monitoring: Automatic detection of all parameters and furnace status
Sintering Time: Approx. 150 minutes for crowns and bridges
Design: Industrial-grade build for long life, stability, and reliability
Temperature Control System: 14-bit AD conversion for precise temperature accuracy
Heating Element: Ultrapure heating elements
Connectivity: Mobile Internet & IoT intelligent fault detection
Programmable Start Function: Sintering start time can be preset
Material Compatibility: Suitable for all types of zirconia, crowns, and bridges
Net Weight: 110kg
Gross Weight: 112kg

Technical specifications

• Maximum Temperature: 1630°C
• Capacity: Up to 70 units per cycle
• Firing Chamber Size: Φ116 mm × 130 mm
• Voltage: 220V, 50Hz
• Chamber Type: Annular chamber (uniform heating)
• Touch Screen: Industrial-grade anti-knock touch screen
• Temperature Control: 14-bit AD conversion (±1°C)
• Heating Elements: Ultrapure, pollution-free
• Connectivity: Mobile Internet & IoT intelligent fault detection
• Sintering Time: Approx. 150 minutes for crowns and bridges
• Programmable Start Function: Preset sintering start time
• Net Weight: 110 kg
• Gross Weight: 112 kg
