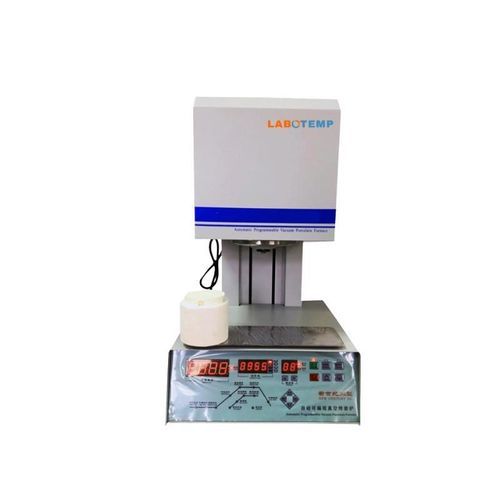

Dental furnace FDV-11

glazingsinteringheating

Product overview
Labotemp Vacuum Porcelain Furnace FDV-11 is a dental-laboratory vacuum kiln designed for firing full-ceramic and metal-porcelain restorations. With a maximum temperature of 1305°C and an adjustable working vacuum up to -97 kPa, the FDV-11 provides stable, repeatable firing cycles suitable for dental labs, materials research, prototype development and quality control.

Key benefits

• Precision: Stable firing up to 1305°C with vacuum control to -97 kPa.
• Process flexibility: Up to 300 programmable cycles for varied ceramic protocols.
• Consistent results: Airtight sealing for reproducible sintering.
• Operator convenience: LED stage indicators, bilingual (Chinese/English) panel and motorized up/down firing tray.

Features

• Airtight vacuum sealing for uniform firing.
• Supports full-ceramic and metal-porcelain workflows.
• Maximum temperature: 1305°C for efficient ceramic processing.
• Vacuum control selectable by time or by temperature.
• Keyboard temperature calibration with real-time time and ambient temperature display.
• Up to 300 user-definable programs for process standardization.
• Chinese and English operation panel for international labs.
• Motorized firing tray with LED stage display for safe handling.

Applications

• Firing of dental crowns, bridges and glazing processes.
• Material research and ceramic sintering testing.
• Dental training and educational laboratories.
• Prototype development and quality control of ceramic restorations.
• Ceramic art and glazing applications.

Technical specifications

• Maximum Temperature: 1305°C
• Maximum Working Vacuum: -97 kPa
• Voltage: 220V, 50Hz
• Temperature Calibration: Keyboard calibration with real-time display of time and ambient temperature
• Programs: Up to 300 user-defined programs
• Display: LED indicators showing firing stages
• Firing Tray Movement: Motorized up/down movement
• Sealing Performance: Airtight vacuum sealing for stable firing results
• Vacuum Control: Adjustable by time or temperature
• Net Weight: 29 kg
• Gross Weight: 30 kg
• Package Size: 630 × 370 × 720 mm
