Dental furnace FDP-04

glazingheat treatmentheating

Product overview

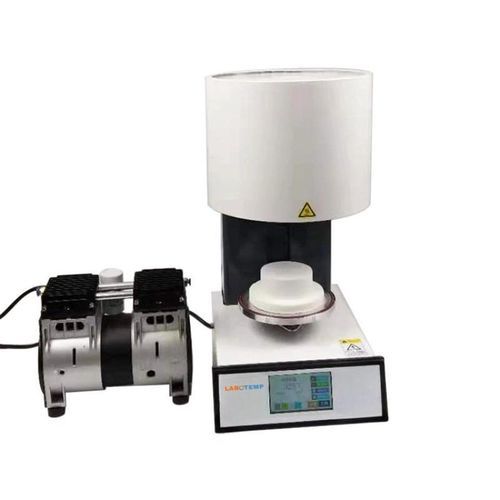

Labotemp FDP-04 is a dental porcelain furnace for precision firing, glazing and thermal treatment of dental ceramics and glass-ceramics. It operates on 100–120 V or 230 V with a maximum power of 1500 W. Core components include a quartz spiral heating chamber, hyperbolic firing modes and automatic temperature calibration before each cycle (±1°C). Vacuum firing is available to increase ceramic density and improve surface finish. USB connectivity and a true-color touchscreen with voice prompts provide program management and service access.

Key benefits

• Firing accuracy: automatic calibration with ±1°C consistency
• Vacuum capability: improves density and surface quality of porcelains
• Intuitive control: true-color touchscreen with voice guidance
• Program capacity: 50 custom and built-in programs with status indication
• Connectivity: USB for program updates and service access
• Quiet operation: precision stepper motor and low-noise tray with programmable speed

Features

• Quartz spiral heating chamber for efficient, uniform heating
• Hyperbolic (single-curve or hyperbolic) ceramic firing modes
• Automatic temperature calibration before each cycle
• Vacuum firing option
• True-color touchscreen with voice prompt function
• Precision stepper motor for smooth tray movement
• 50 programmable profiles with status display
• USB interface for program transfer and maintenance

Applications

• Firing, glazing and heat treatment of dental porcelains and glass-ceramics
• Dental laboratories, prosthetics workshops, ceramic prototyping and educational/research labs

Technical specifications

• Model: FDP-04 (porcelain furnace)
• Brand: Labotemp
• Maximum temperature: 1200°C
• Power supply: 100–120 V / 230 V (50/60 Hz)
• Power: 1500 W max (including vacuum)
• Current rating: 145 A @ 110 V; 7.0 A @ 230 V
• Temperature accuracy: ±1°C with automatic calibration before each cycle
• Heating chamber: quartz spiral
• Furnace core platform diameter: 9 cm
• Dimensions (H×W×D): 27 × 36 × 53 cm
• Net weight: 32 kg; Gross weight: 33 kg; Package dimensions: 89 × 73 × 96 cm
• Control: true-color touchscreen with voice prompts; USB connectivity
• Programs: 50 custom and built-in programs with status indication
