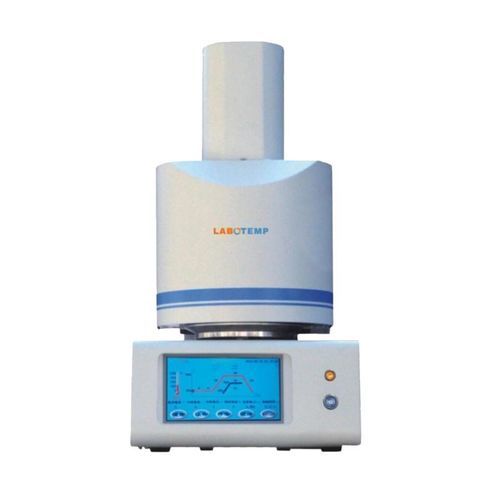

Dental furnace FDP-05

glazingsinteringpress

Overview
Labotemp FDP-05 is a dental press and porcelain furnace designed for zirconia sintering, porcelain pressing and ceramic firing in dental laboratories. The unit delivers a maximum temperature of 1600°C, a Φ116 × 130 mm chamber capacity up to 70 units per cycle, precise 14‑bit AD temperature control (±1°C) and smart IoT connectivity for remote monitoring and fault detection.

Key features

• Maximum temperature 1600°C for high‑temperature processing
• Ring‑type chamber design for uniform temperature distribution
• Capacity up to 70 units per cycle (chamber Φ116 × 130 mm)
• 14‑bit AD temperature control for precise regulation (±1°C)
• Programmable start time and multiple user programs for repeatable workflows
• Industrial anti‑shock touchscreen for reliable laboratory use
• Compatible with common zirconia and porcelain materials; suitable for pressing and sintering
• Smart IoT & mobile internet connectivity for remote status and intelligent fault detection
• Supports porcelain pressing workflows including 100 g / 200 g pressing modes

Applications

• Porcelain firing and glazing with programmable thermal profiles
• Zirconia and glass‑ceramic sintering for dental restorations
• Dental pressing for crowns, bridges and laboratory restorations
• Routine dental laboratory ceramic processing with repeatable cycles

Standard accessories

• Vacuum pump – 1 set
• Platform – 1 PCS
• Firing tray – 2 PCS
• Silicon tube – 1 PCS
• Support pin – 1 bag
• Fuse (15A) – 1 PCS
• Fuse (5A) – 1 PCS

Technical specifications

• Capacity: Up to 70 units
• Maximum temperature: 1600°C
• Chamber size: Φ116 mm × 130 mm
• Temperature control: 14‑bit AD conversion (±1°C)
• Heating rate: configurable
• Power supply: 220V ±10% 15A
• Power consumption: 1.5 KVA ±10%
• Furnace dimensions: 320 × 398 × 602 mm
• Weight: 24 kg net / 25 kg gross
• Touch screen: Industrial anti‑shock touchscreen
• Connectivity: Mobile Internet & IoT intelligent fault detection
• Programmable times: Drying / Preheat / Firing / Cooling 0–3600 seconds
