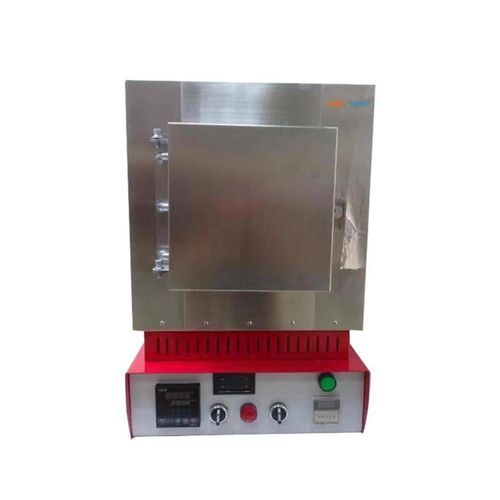

Dental furnace FDB-03

heat treatmentburnoutsintering

Product overview
Labotemp Burnout Furnace FDB-03 is a laboratory burnout furnace designed for controlled wax elimination and thermal processing in dental laboratories, jewelry casting units and industrial research labs. The unit delivers repeatable temperature profiles for mold preparation, ceramic firing and small-scale heat treatment while minimizing heat loss through high-grade insulation. The furnace uses a microprocessor-based controller with a digital display supporting multi-stage programs (up to six segments), programmable hold times and controlled ramp rates. Integrated fume extraction and visual/acoustic alerts support safe operation and process monitoring.

Key features

• ISO 13485 & CE certified
• Power: 3000W for stable heating
• Maximum temperature: 1100°C
• Rated current: ≤ 15A
• Microprocessor multi-stage programming (up to 6 segments) with digital display
• Programmable hold times and controlled heating rates
• Integrated fume extraction for wax burnout operations
• Visual and acoustic alerts for program progress and fault indication
• Fast, accurate heating with uniform temperature distribution
• Durable chamber and thermal insulation to reduce energy loss
• Compact, user-focused design suitable for laboratory and dental bench use

Applications

• Wax elimination and controlled burnout for dental and jewelry workflows
• Mold burnout and mold preparation prior to casting
• Ceramic sintering and porcelain firing
• Small-scale metal heat treatment and material testing
• Sample drying and general laboratory thermal processes

Specifications (table)
Maximum temperature : 1100°C
Rated power : 3000W
Rated current : ≤ 15A
Voltage : 220V, 50Hz
Net weight : 42 kg
Gross weight : 43 kg

Technical specifications

• Model: FDB-03
• Maximum temperature: 1100°C
• Rated power: 3000W
• Rated current: ≤ 15A
• Power supply / Voltage: 220V, 50Hz
• Control: Microprocessor digital control with multi-stage programming (up to 6 segments)
• Programmable functions: multi-stage programs, programmable hold times, controlled ramp rates
• Safety & features: integrated fume extraction, visual and acoustic fault/program alerts
• Construction: durable chamber with high thermal insulation
• Net weight: 42 kg
• Gross weight: 43 kg
