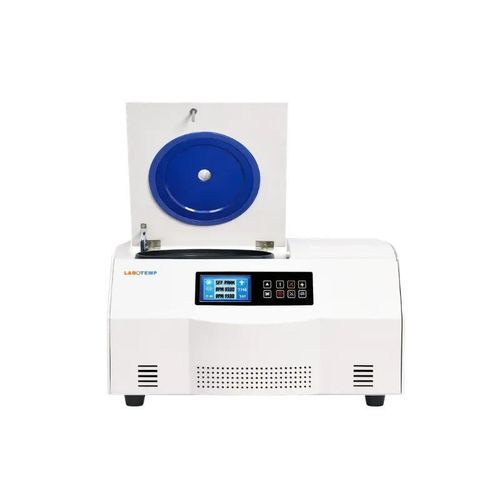

Refrigerated centrifuge LRC-202

laboratoryclinicalfor the pharmaceutical industry

Product overview
The LRC-202 refrigerated benchtop centrifuge is engineered for clinical, molecular biology and research laboratories that require high-speed, temperature-controlled separations. Capable of up to 21,000 rpm (max RCF 31,061 × g) and a working temperature range of -20°C to 40°C with ±1°C stability, it supports workflows such as DNA/RNA extraction, protein purification, PCR setup and diagnostic sample processing. Microprocessor control, an intuitive LCD display and programmable memory enable reproducible runs and straightforward operation.

Key benefits

• High-throughput processing with speeds up to 21,000 rpm and multiple rotor options
• Precise temperature control (-20°C to 40°C) to protect thermolabile samples
• Comprehensive safety: RFID rotor recognition, imbalance detection, lid interlock and over-speed protection
• Robust materials: 304 stainless steel chamber and corrosion-resistant construction for lab environments
• Energy-efficient refrigeration and low-noise operation suitable for clinical and research settings

Features

• Microprocessor control with simultaneous display of speed, time and temperature
• Frequency-conversion AC motor for stable, low-maintenance operation
• Autoclavable rotors and buckets; high-strength aluminium rotors with precision balancing
• PID temperature control with ±1°C accuracy and 1°C adjustment steps
• Up to 30 programmable memory settings and last-run recall
• Adjustable acceleration/deceleration (10 levels each) and real-time parameter modification
• Automatic lid locking during operation and emergency lid release on power failure
• Viewing port for visual checks and reinforced lid structure with controlled opening

Applications

• Refrigerated separation for DNA/RNA, proteins and cellular components
• Clinical diagnostics and hospital sample preparation requiring temperature control
• Pharmaceutical and biotech sample processing
• Molecular biology workflows including PCR preparation and nucleic acid purification
• Blood component processing and advanced analytical protocols

Compatible rotors / adapters (optional modules)

• No.1 — Angle rotor: 12 × 1.5/2.2 ml; Max speed 21,000 r/min; Max RCF 31,061 × g; Tube type: PP/PC. Adapters: 12×0.5 ml, 12×0.2 ml.
• No.2 — Angle rotor: 12 × 5 ml; Max speed 14,000 r/min; Max RCF 14,024 × g; Adapter: 12×1.5 ml.
• No.3 — Angle rotor: 12 × 10 ml; Max speed 15,000 r/min; Max RCF 20,557 × g; Adapters: 12×5 ml, 12×1.5 ml.
• No.4 — Angle rotor: 24 × 1.5/2.2 ml; Max speed 16,000 r/min; Max RCF 22,896 × g; Adapters: 24×0.5 ml, 24×0.2 ml.
• No.5 — Angle rotor: 48 × 1.5/2.2 ml; Max speed 14,000 r/min; Max RCF 20,378 × g; Adapters: 48×0.5 ml, 48×0.2 ml.
• No.6 — Angle rotor: 12 × 8×0.2 ml (PCR 8-tube strips); Max speed 14,000 r/min; Max RCF 23,120 × g.
• No.7 — Angle rotor: 10 × 15 ml; Max speed 13,000 r/min; Max RCF 20,595 × g; Adapters available for 10×5 ml and 10×1.5 ml.
• No.8 — Angle rotor: 6 × 50 ml; Max speed 13,000 r/min; Max RCF 17,005 × g; Adapters available for 6×15 ml, 6×10 ml, 6×1.5 ml.
• No.9 — Angle rotor: 4 × 10/100 ml; Max speed 11,000 r/min; Max RCF 13,280 × g; Adapters for 4×50 ml, 4×15 ml, 4×10 ml, 4×5 ml, 4×1.5 ml.

Technical specifications

• Model: LRC-202
• Maximum speed: 21,000 rpm
• Maximum RCF: 31,061 × g
• Maximum capacity (standard rotor): 4 × 100 ml
• Temperature range: -20°C to 40°C; Temperature accuracy: ±1°C
• Time range: 1–99 min 59 s
• Control: Microprocessor control with LCD display
• Program memory: 30 programs
• Motor: Frequency conversion AC motor
• Power: 880 W; Current: 10 A; Voltage: AC 220V; Frequency: 50 Hz
• Noise level: ≤58 dB(A)
• Acceleration/Deceleration: 10/10 steps (adjustable)
• Dimensions (W×D×H): 600 × 570 × 380 mm; Net weight: 80 kg
