Refrigerated centrifuge LRC-208

laboratoryfor biologyclinical

Product overview

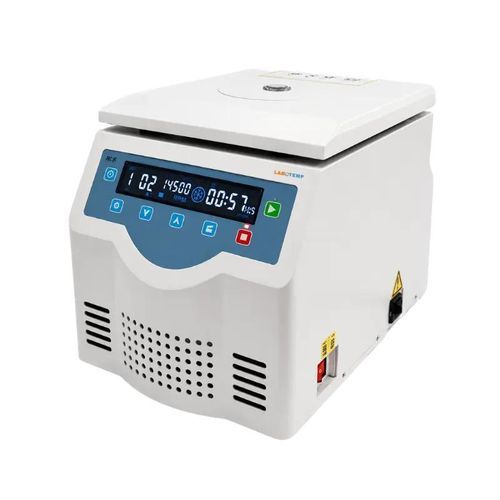

Labotemp LRC-208 refrigerated benchtop centrifuge provides temperature-controlled centrifugation for clinical diagnostics, molecular biology, biotechnology, blood banking and pharmaceutical labs. The unit supports speeds up to 16,500 rpm and a maximum RCF of 19,956 × g, with a refrigeration range of -20°C to 40°C and temperature control accuracy of ±1°C to preserve sensitive samples during processing.

Control & Operation
The LRC-208 features a 7-inch LCD for real-time display of speed, temperature, RCF, time and acceleration/deceleration. It offers 15 programmable memory positions, compatibility with multiple rotor types, and rapid acceleration/deceleration control. Safety systems include electronic imbalance detection, overspeed and overtemperature protection, and an automatic electronic door lock for secure operation in continuous workflows.

Key features

• Temperature-controlled operation: -20°C to 40°C (±1°C)
• Maximum speed 16,500 rpm; maximum RCF 19,956 × g
• AC frequency-conversion direct-drive motor for stable, low-noise operation
• Integrated microcomputer control with 7-inch LCD monitoring
• 15 programmable memory settings and multi-rotor compatibility
• Electronic imbalance detection, overspeed and overtemperature protections
• Electronic self-absorbing (automatic) door lock and robust cabinet for stability

Applications

• Temperature-controlled separation of blood components (serum, plasma) and routine clinical diagnostics
• Nucleic acid processing and PCR sample preparation (DNA/RNA extraction)
• Protein separation and processing of cell suspensions for molecular biology and biotech labs
• Pharmaceutical R&D, blood banking and academic research requiring cold-chain centrifugation

Optional Rotors / Summary
No. | Rotor Type | Maximum Capacity | Maximum Speed | Maximum RCF
1 | Angle Rotor | 12 × 1.5 / 2.2 mL (adapters: 12 × 0.5 mL; 12 × 0.2 mL) | 16,500 r/min | 19,176 × g
2 | Angle Rotor | 24 × 1.5 / 2.2 mL (adapters: 24 × 0.5 mL; 24 × 0.2 mL) | 14,500 r/min | 19,956 × g
3 | Angle Rotor | 8 × 8 × 0.2 mL | 14,000 r/min | 16,480 × g
4 | Angle Rotor | 18 × 5 mL (adapter: 18 × 1.5 mL) | 12,000 r/min | 13,668 × g

Technical specifications

• Maximum speed: 16,500 rpm
• Maximum capacity: 18 × 5 mL
• Maximum RCF: 19,956 × g
• Temperature range: -20°C ~ 40°C
• Power supply: AC 220V, 50Hz, 10A
• Temperature control accuracy: ±1°C
• Speed accuracy: ±10 r/min
• Time control: 1 sec – 99 min 59 sec adjustable
• Acceleration / Deceleration: 10 / 10 steps
• Display: 7-inch LCD (integrated microcomputer)
• Noise level: ≤ 55 dB(A)
• Dimensions (W × D × H): 440 × 300 × 330 mm
• Power consumption: 700 W
• Net weight: 35 kg
• Package size: 670 × 420 × 450 mm
