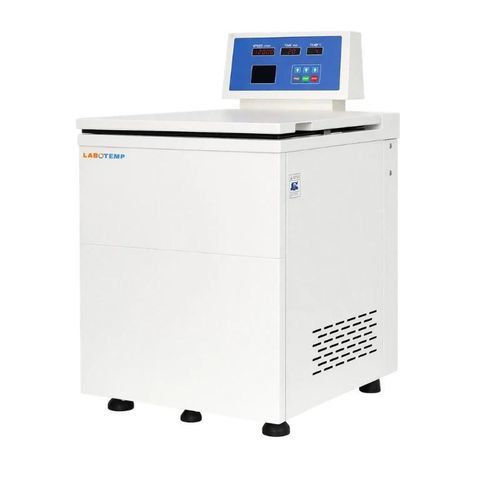

Laboratory centrifuge LRC-103

clinicalfor the pharmaceutical industryfor molecular biology

Overview
Labotemp floor-standing refrigerated centrifuge LRC-103 is a high-speed laboratory centrifuge designed for precise temperature-controlled separation. It reaches up to 22,000 rpm with a maximum RCF of 53,028 × g and temperature control from -20°C to +40°C (±1°C), suitable for plasma, serum, enzymes, cell culture materials and other temperature-sensitive biomolecules.

Control & Safety
Advanced microprocessor CPU with touch LCD color display provides real-time monitoring of speed, RCF, time and program parameters. Safety systems include automatic rotor identification (RFID), imbalance detection with automatic shutdown, motorized lid locking, overspeed protection and self-diagnostic functions.

Why Choose LRC-103

• Ultra-high separation force up to 53,028 × g for demanding molecular biology and pharmaceutical workflows.
• Designed for continuous laboratory use with precision engineering and long-term reliability.
• Comprehensive safety features: RFID rotor ID, imbalance shutdown and secure lid locking.

Features

• Exceptional RCF performance
• High-speed operation up to 22,000 rpm
• Large capacity: up to 4 × 1000 ml for batch processing
• Refrigerated operation from -20°C to +40°C with ±1°C accuracy
• Microprocessor control and touch LCD with real-time display
• RTC function for process tracking
• Self-locking rotor system and automatic RFID rotor identification
• AC frequency conversion direct-drive motor
• PID dynamic temperature control with dual-loop heating/cooling
• CFC-free refrigeration with pre-cooling
• Stainless steel chamber and aerodynamic shield design
• 30 programmable memory presets with recall
• Adjustable acceleration/deceleration (10 levels)
• Low noise ≤60 dB(A) and caster wheels for mobility
• Advanced safety: imbalance detection, overspeed protection, lid lock, self-diagnostics

Applications

• High-speed separation of biological samples, proteins and nucleic acids under controlled temperatures
• Clinical and hospital laboratories for blood fractionation and diagnostic workflows
• Pharmaceutical QC and GMP environments requiring validated, repeatable centrifugation
• Molecular biology and biotech labs handling enzymes, DNA and cell separations
• Research and industrial labs performing high-throughput, high-RCF sample processing

Optional Modules (Rotor / Adapter) — table (each row separated by <br>)
No. | Rotor / Adapter | Max Capacity | Max Speed | Max RCF | Tube Type
1 | Fixed Angle Rotor | 24 × 1.5 ml | 22000 r/min | 53028 × g | PP / PC Tubes
2 | Fixed Angle Rotor | 16 × 10 ml | 21000 r/min | 52300 × g | PP / PC Tubes
3 | Fixed Angle Rotor | 12 × 15 ml | 18000 r/min | 36220 × g | PP / PC Tubes
4 | Fixed Angle Rotor | 6 × 50 ml | 20000 r/min | 43000 × g | PP / PC Tubes
5 | Fixed Angle Rotor | 6 × 85 ml | 15000 r/min | 25700 × g | PP / PC Tubes
6 | Fixed Angle Rotor | 4 × 250 ml | 14000 r/min | 30200 × g | PP / PC Tubes
7 | Fixed Angle Rotor with Adapter | 6 × 250 ml; Adapter: 6 × 50 ml | 12000 r/min | 22500 × g | PP / PC Tubes
8 | Fixed Angle Rotor | 8 × 100 ml | 14000 r/min | 26952 × g | PP / PC Tubes
9 | Fixed Angle Rotor | 6 × 500 ml | 10000 r/min | 17800 × g | PP / PC Tubes
10 | Fixed Angle Rotor | 4 × 1000 ml | 8000 r/min | 12000 × g | PP / PC Tubes

Technical Specifications

• Maximum Capacity: 4 × 1000 ml
• Maximum Speed: 22,000 rpm
• Maximum RCF: 53,028 × g
• Temperature Range: -20°C to +40°C
• Temperature Accuracy: ±1°C
• Refrigerant: R-22
• Power Supply: AC 220V, 50 Hz, 30 A
• Control System: Advanced CPU control system
• Display: Touch LCD color digital screen
• Timer Range: 1 – 99 min 59 sec
• Acceleration / Deceleration: 10 levels
• Motor Type: AC frequency conversion motor, direct drive
• Noise Level: ≤60 dB(A)
• Net Weight: 250 kg
• Gross Weight: 280 kg
• Dimensions (L×W×H): 860 × 730 × 1200 mm
• Packing Size (L×W×H): 920 × 790 × 1700 mm
