Refrigerated centrifuge LRC-201

laboratoryclinicalfor the pharmaceutical industry

Product Overview

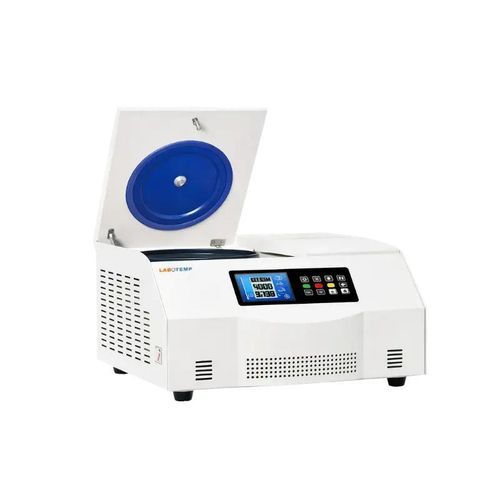

Labotemp Refrigerated Benchtop Centrifuge LRC-201 provides temperature-controlled, high-speed sample separation for clinical, pharmaceutical and research laboratories. Capable of up to 16,500 rpm with a controlled temperature range from -20°C to 40°C (1°C steps) and PID regulation (±1°C), it supports workflows requiring thermal stability such as DNA/RNA extraction, protein analysis and blood component processing.

Key Design & Control
The unit features a microprocessor-controlled interface with LCD display, programmable memory (up to 30 programs), real-time parameter monitoring and adjustable acceleration/deceleration (10 levels). The chamber is 304 stainless steel and the enclosure uses a scratch-resistant coated metal housing for laboratory durability.

Safety & Reliability
Safety systems include RFID rotor identification, active imbalance detection with automatic shutdown, lid interlock and automatic lid locking with controlled opening. Over-speed protection and emergency lid release (power-failure) are provided to protect samples and operators.

Why Choose LRC-201

• Precise refrigerated operation for temperature-sensitive protocols
• Wide rotor compatibility for flexible sample throughput
• Comprehensive safety features for clinical and research environments

Features

• Multi-rotor flexibility with numerous optional rotors/adapters
• Intelligent microprocessor control with real-time LCD/TFT display
• Frequency-conversion AC motor for stable, low-maintenance operation
• 304 stainless steel chamber resistant to corrosion and chemicals
• Scratch-resistant coated metal housing and lid
• High-strength aluminium alloy rotors with precision balancing
• Autoclavable rotors and buckets for contamination-free workflows
• Reinforced chamber with layered lid construction and viewing port
• Precision-engineered rotor slots for smooth loading/unloading
• CFC-free refrigeration system (eco-friendly)
• PID dynamic temperature control (±1°C) and 1°C setpoint steps
• Real-time parameter adjustment during operation
• Up to 30 programmable memory settings and last-run recall
• Adjustable acceleration/deceleration (10 levels each)
• Automatic rotor identification with over-speed protection
• Active imbalance detection with automatic shutdown

Applications

• High-speed separation of biological samples (DNA, RNA, proteins) under controlled temperature
• Clinical diagnostics and hospital laboratory workflows requiring refrigerated centrifugation
• Pharmaceutical and biotechnology sample preparation needing thermal stability
• Molecular biology and biochemical research with temperature-sensitive samples
• Blood component processing and advanced laboratory analysis

Optional Rotors / Adapters (summary table)
No. | Rotor / Adapter | Max Capacity | Max Speed | Max RCF | Tube Type
1 | Angle Rotor | 12 × 1.5/2.2 ml | 16500 r/min | 19175 × g | PP/PC tube
— | Adapter | 12 × 0.5 ml | — | — | PP/PC tube
— | Adapter | 12 × 0.2 ml | — | — | PP/PC tube
2 | Angle Rotor | 12 × 5 ml | 16500 r/min | 19480 × g | PP/PC tube
— | Adapter | 12 × 1.5 ml | — | — | PP/PC tube
3 | Angle Rotor | 12 × 10 ml | 12000 r/min | 13156 × g | PP/PC tube
— | Adapter | 12 × 5 ml | — | — | PP/PC tube
4 | Angle Rotor | 24 × 1.5/2.2 ml | 14000 r/min | 17530 × g | PP/PC tube
— | Adapter | 24 × 0.5 ml | — | — | PP/PC tube
— | Adapter | 24 × 0.2 ml | — | — | PP/PC tube
5 | Angle Rotor | 36 × 1.5/2.2 ml | 13000 r/min | 15400 × g | PP/PC tube
— | Adapter | 36 × 0.5 ml | — | — | PP/PC tube
— | Adapter | 36 × 0.2 ml | — | — | PP/PC tube
6 | Angle Rotor | 12 × 8×0.2 ml | 15000 r/min | 23120 × g | PCR 8-tube strips
7 | Angle Rotor | 10 × 15 ml | 11000 r/min | 14745 × g | PP/PC tube
— | Adapter | 10 × 10 ml | — | — | PP/PC tube
— | Adapter | 10 × 5 ml | — | — | PP/PC tube
8 | Angle Rotor | 6 × 50 ml | 11000 r/min | 12175 × g | PP/PC tube
— | Adapter | 6 × 15 ml | — | — | PP/PC tube
— | Adapter | 6 × 10 ml | — | — | PP/PC tube
— | Adapter | 6 × 1.5 ml | — | — | PP/PC tube
9 | Angle Rotor | 4 × 10/100 ml | 10000 r/min | 10975 × g | PP/PC tube
— | Adapter | 4 × 50 ml | — | — | PP/PC tube
— | Adapter | 4 × 15 ml | — | — | PP/PC tube
— | Adapter | 4 × 10 ml | — | — | PP/PC tube
— | Adapter | 4 × 5 ml | — | — | PP/PC tube
— | Adapter | 4 × 1.5 ml | — | — | PP/PC tube

Technical Specifications

• Maximum Speed: 16500 rpm
• Maximum RCF: 23120 × g
• Maximum Capacity: 4 × 100 ml
• Voltage: AC 220V
• Frequency: 50 Hz
• Current: 10 A
• Power: 880 W
• Noise Level: ≤58 dB(A)
• Temperature Range: -20°C to 40°C
• Temperature Accuracy: ±1°C
• Time Range: 1–99 min 59 sec
• Speed Accuracy: ±10 r/min
• Control System: Microprocessor control
• Motor: Frequency conversion AC motor
• Display: LCD
• Program Memory: 30 programs
• Acceleration/Deceleration: 10/10 steps
• Construction: 304 stainless steel chamber
• Dimension: 600 × 570 × 380 mm
• Weight: 74 kg
