Laboratory centrifuge LRC-205

clinicalfor molecular biologyfor research

Product Overview

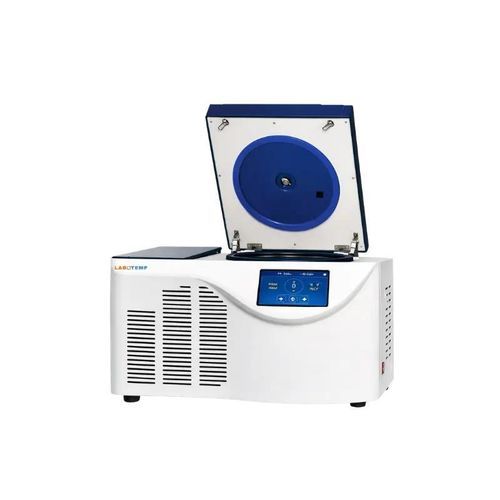

Labotemp Refrigerated Benchtop Centrifuge LRC-205 is a high-speed refrigerated centrifuge built for clinical, molecular biology and research laboratories. It delivers up to 22,000 rpm (max RCF 34,090 × g) with precise temperature control from -9°C to +35°C (±1°C). The unit features a TFT touch screen, programmable workflows, USB data traceability (>1000 records), UV chamber sterilization and multiple safety protections including imbalance detection, automatic lid locking, lid interlock and overspeed protection.

Key Benefits

• Ultra-high speed separation up to 22,000 rpm for rapid sample processing
• Refrigerated operation with ±1°C temperature accuracy to protect sensitive biological materials
• Integrated biosafety features: UV sterilization, gas-tight sealing options and instant disinfection at startup
• Programmable operation, run storage and USB traceability for reproducibility and regulatory compliance
• Multiple rotor compatibility and corrosion-resistant chamber for flexible laboratory workflows

Features

• UV chamber sterilization and instant startup disinfection
• Microprocessor-based control with real-time monitoring (RTC)
• Frequency-conversion drive for stable, low-maintenance operation
• Corrosion-resistant stainless steel chamber and impact-resistant housing
• High-strength aluminium alloy rotors; many rotors and autoclavable options
• TFT touch screen interface with programmable programs and password-protected data communication
• Automatic rotor identification, overspeed protection and active imbalance detection with automatic shutdown
• Adjustable acceleration/deceleration (1–10 rates) and controlled lid opening with drop protection
• Emergency lid release on power interruption and viewing port for operational monitoring
• Gas-tight sealing compatible with high-temperature sterilization processes

Applications

• Refrigerated high-speed separation of DNA, RNA, proteins and cells
• Clinical diagnostics and hospital laboratories requiring controlled RCF and thermal stability
• Pharmaceutical and biotechnology sample preparation under sterile, traceable conditions
• Molecular biology research demanding high-speed precision and contamination control
• Blood processing and analytical workflows with reproducibility and data logging needs

Optional Rotors / Adapters (selection)

• 1) Angle rotor — 12 × 1.5/2.2 ml — 22,000 rpm — 34,090 × g — PP/PC tubes; adapters for 0.5 ml and 0.2 ml
• 2) Angle rotor — 12 × 5 ml — 18,000 rpm — 23,182 × g — PP/PC tubes; adapters for 1.5 ml
• 3) Angle rotor — 24 × 1.5/2.2 ml — 18,000 rpm — 29,000 × g — PP/PC tubes; adapters for 0.5 ml and 0.2 ml
• 4) Angle rotor — 12 × 10 ml — 16,000 rpm — 23,389 × g — PP/PC tubes; adapters for 5 ml and 1.5 ml
• 5) Angle rotor — 10 × 15 ml — 15,000 rpm — 27,418 × g — PP/PC tubes; adapters for 5 ml and 1.5 ml
• 6) Angle rotor — 6 × 50 ml — 16,000 rpm — 25,758 × g — PP/PC tubes; adapters for 15 ml, 10 ml and 1.5 ml
• 7) Angle rotor — 8 × 50 ml — 15,000 rpm — 26,800 × g — PP/PC tubes; adapters for 15 ml, 10 ml and 1.5 ml
• 8) Angle rotor — 6 × 100 ml — 15,000 rpm — 27,170 × g — PP/PC tubes; adapters for 50/15/10/5/1.5 ml
• 9) Angle rotor — 4 × 250 ml — 10,000 rpm — 14,534 × g — PP/PC tubes; adapters for 50/15/10/5/1.5 ml
• 10) Swing rotor — 4 × 750 ml — 4,500 rpm — 4,358 × g — round cups; adapters for vacuum blood tubes and multiple vial configurations
• 11) Microplate rotor — 2 × 2 × 96 wells — 4,200 rpm — 3,057 × g; adapters for 32×1.5 ml tubes

Technical Specifications

• Maximum Speed: 22,000 rpm
• Maximum RCF: 34,090 × g
• Maximum Capacity: Swing rotor 4 × 750 ml / Angle rotor 4 × 250 ml
• Voltage: AC 220 V
• Frequency: 50 Hz
• Current: 10 A
• Power: 1,300 W
• Noise Level: ≤58 dB(A)
• Temperature Range: -9°C to +35°C
• Temperature Accuracy: ±1°C
• Time Range: 1–99 min 59 s
• Speed Accuracy: ±10 r/min
• Control System: Microprocessor control
• Display: TFT touch screen
• Acceleration/Deceleration: 1–10 selectable rates
• Dimensions (W×D×H): 735 × 730 × 360 mm
• Net Weight: 110 kg
