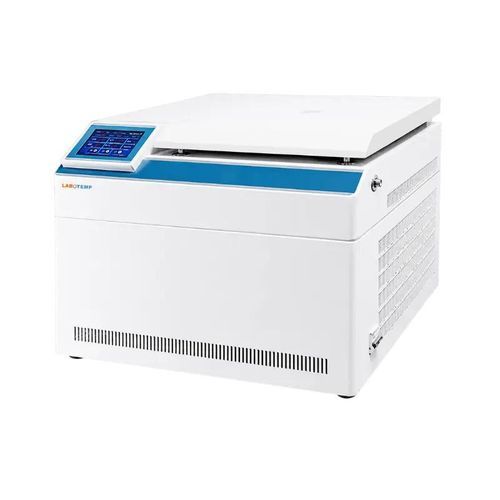

Laboratory centrifuge LRC-207

for biologyclinicalfor the pharmaceutical industry

Overview
Labotemp Refrigerated Benchtop Centrifuge LRC-207 is a compact, high-performance refrigerated benchtop centrifuge engineered for precise sample separation in clinical diagnostics, molecular biology, pharmaceutical and research laboratories. Integrated cooling and stable speed control ensure reliable processing of temperature-sensitive samples such as blood components, cell cultures, proteins and nucleic acids. The unit delivers up to 6000 rpm (RCF up to 5502×g) and a temperature range from -20°C to +40°C.

Performance & Operation
Designed for continuous laboratory use, the LRC-207 features microprocessor control with a touchscreen interface, ±1°C temperature accuracy and ±10 rpm speed precision for reproducible results. Rapid pre-cooling brings the chamber from ambient to +4°C in approximately 5 minutes. The CFC-free refrigeration system improves energy efficiency and environmental compliance. A stainless-steel chamber, electronic safety door lock, automatic rotor recognition and selectable acceleration/deceleration profiles provide safe and reliable operation across workflows.

Key Advantages

• Precision benchtop centrifuge with stable 6000 rpm operation and accurate speed control
• Advanced refrigerated performance from -20°C to +40°C to protect temperature-sensitive samples
• Stainless-steel chamber for corrosion resistance and long service life

Features

• 6000 RPM precision
• Stainless-steel centrifuge chamber resistant to corrosion and easy to clean
• Durable all-steel body structure for long-term laboratory use
• Low-noise AC inverter motor for smooth and stable operation
• Automatic rotor recognition system to enhance operational safety
• Electronic safety door locking mechanism during operation
• Multiple timing modes with programmable run duration settings
• Compatible with interchangeable rotor configurations for flexible applications
• CFC-free refrigeration design supporting environmentally conscious operation
• Microprocessor-based control system for accurate operational management
• Integrated touchscreen interface for simplified parameter setting and monitoring
• Adjustable acceleration and deceleration profiles for optimized sample protection
• Real-time RPM and RCF switching for convenient operation

Applications

• Blood component separation
• Cell culture processing
• Protein and nucleic acid isolation
• Temperature-sensitive sample preparation in clinical diagnostics, molecular biology, pharmaceutical, biotechnology and research laboratories
• Routine laboratory centrifugation requiring controlled cooling, precise speed regulation and safe continuous operation

Optional Modules / Rotor Configurations (excerpt)
S.No: 1 — Rotor Type: Swing Rotor 1 — Capacity: 300 ml × 4; Adaptor: 250 ml × 4, 100 ml × 4, 50 ml × 12; 10/15 ml × 40, 10/15 ml (▲) × 20; 5 ml (vacuum tube) × 56, 5 ml × 76 — Max Speed: 4500 rpm — Max RCF: 3645 × g
S.No: 2 — Rotor Type: Swing Rotor 2 — Capacity: 100 ml × 8; Adaptor: 100 ml × 8, 50 ml × 8, 10/15 ml (●) × 32 — Max Speed: 4500 rpm — Max RCF: 3645 × g
S.No: 3 — Rotor Type: Angle Rotor — Capacity: 50 ml × 6 — Max Speed: 6000 rpm — Max RCF: 5502 × g
S.No: 4 — Rotor Type: Microplate Rotor — Capacity: 96 well × 2; 96 well × 2 × 2 — Max Speed: 5000 rpm — Max RCF: 3530 × g

Technical Specifications

• Maximum Speed: 6000 rpm
• Maximum Capacity: 300 mL × 4
• Maximum RCF: 5502 × g
• Input Voltage: AC 220V 50Hz / 110V 60Hz, 15A
• Installation Type: Table-top
• Temperature Range: -20°C to +40°C
• Speed Accuracy: ±10 rpm
• Temperature Accuracy: ±1°C
• Noise Level: ≤60 dB
• Timing Range: 1 s ~ 17 h : 59 min : 59 s / Jog
• Power Consumption: 1800 W
• Dimensions (L × W × H): 570 × 615 × 504 mm
• Cooling System: CFC-free refrigerant with rapid pre-cooling
• Pre-cooling Performance: From +21°C to +4°C in 5 minutes
• Package Size (Rotors): 360 × 310 × 260 mm
• Gross Weight (Rotors): 4.1 kg
• Package Size: 830 × 780 × 700 mm
• Net Weight: 95 kg
• Gross Weight: 149 kg
