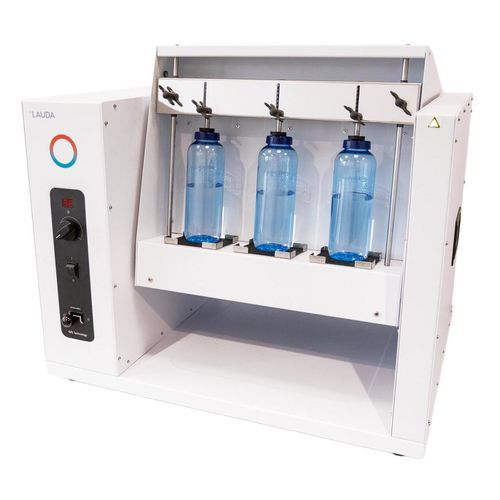

Rotary laboratory shaker Varioshake VS 20 OH

overheaddigitalanalog

Product summary
LAUDA Varioshake overhead shakers feature a four-level rotating rack; each level accepts up to three vessels up to 270 mm high. Height-adjustable stainless-steel clamp holders secure the vessels.

Features

• Overhead rotary motion suitable for mixing powders and pasty samples
• Clear control panel with rotary knobs and speed display
• Overload-protected DC motor with electronic stepless speed control and gentle start-up
• Constant speed independent of load; suitable for continuous operation
• Capacity up to 12 vessels (round or square); vessels up to Ø 110 mm and 270 mm height
• Rotating rack with ball bearings on both sides and safe slide-hub drive
• Height-adjustable stainless-steel clamp holders for secure fixation
• Outer housing made of electrolytically galvanized, powder-coated sheet steel

Technical data (according to DIN 12876)
Ambient temperature range: 10 ... 40 °C
Max. power consumption: 0.1 kW
Shaking frequency: 1 ... 20 1/min
Max. load: 20 kg
Dimensions (WxDxH): 770 x 700 x 715 mm
Weight: 68 kg
Power plug: Power cord with angled plug (CEE7/7)
Power supply: 230 V; 50/60 Hz

Technical specifications

• Model: Varioshake VS 20 OH
• Device type: Overhead rotary shaker
• Rack: Four-level rotating rack with ball bearings and slide-hub drive
• Capacity: Up to 12 vessels (uniform loading); vessels up to Ø 110 mm, height 270 mm
• Clamping: Height-adjustable stainless-steel clamp holders
• Drive: Overload-protected DC motor; electronic stepless speed control; constant speed independent of load
• Speed range: 1–20 1/min with speed display
• Max. load: 20 kg
• Power consumption: 0.1 kW
• Dimensions (WxDxH): 770 x 700 x 715 mm
• Weight: 68 kg
• Housing: Electrolytically galvanized sheet steel, powder-coated
• Power supply / plug: 230 V; 50/60 Hz, power cord with angled plug (CEE7/7)
• Order no.: L003064
