Microbiology laboratory incubator Varioshake VS 45 OI

for cell culturesfor the pharmaceutical industrycompact

Product overview

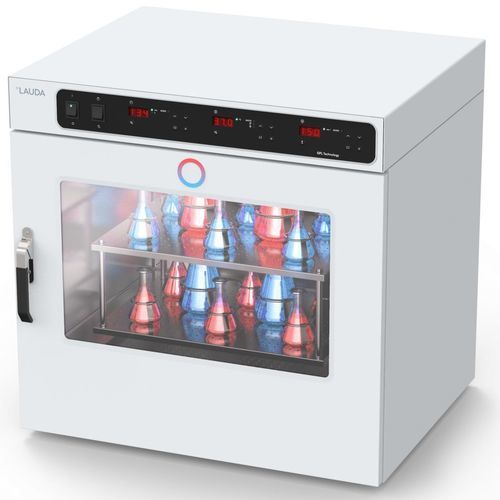

The LAUDA Varioshake VS 45 OI is a compact orbital shaking incubator for laboratory use. This variant (part no. L003053) offers a usable volume of 36 L, precise temperature control with stability of ±0.2 K and an orbital shaking motion designed for reproducible results in research and quality-control applications.

Key features

• Orbital shaking incubator with constant-speed drive independent of load
• Membrane keypad with clear symbols and LED temperature display (0.1 °C resolution)
• Capacity for two shaking trays (one tray for vessels higher than 150 mm)
• Microprocessor-controlled timer (1 min to 999 h) with remaining-time display and acoustic end signal
• Optional cooling coil for sub-ambient applications
• RS-232 interface for data transfer
• Interior lighting and safety interlock that stops shaking and heating when the door is opened
• Overload-protected AC motor with mass balancing for low-wear, stable operation
• Additional electromechanical temperature limiter

Working range

• Minimum working temperature: 28 °C
• Maximum working temperature: 70 °C (20 °C with water cooling)
• Temperature stability: ±0.2 K
• Shaking amplitude: 25 mm
• Shaking frequency: 20–250 rpm

Technical data (according to DIN 12876)

• Product line: LAUDA Varioshake
• Model: Varioshake VS 45 OI — Part no. L003053
• Usable volume (this variant): 36 L
• Interior dimensions (WxDxH): 420 x 270 x 320 mm
• Overall dimensions (WxDxH): 710 x 650 x 710 mm
• Weight: 72 kg
• Power supply: 230 V; 50/60 Hz; power cord with angled plug (CEE7/7)
• Shaking amplitude: 25 mm; frequency: 20–250 rpm

Applications

• Microbiology and cell-culture incubation
• Biotechnology and pharmaceutical R&D
• Quality control laboratories and routine sample processing

Ordering information

• Part number: L003053
• Available options: cooling coil, additional tray sets, RS-232 connection
