Orbital laboratory shaker Varioshake VS 15 B

digitalcompactvariable-speed

Product overview

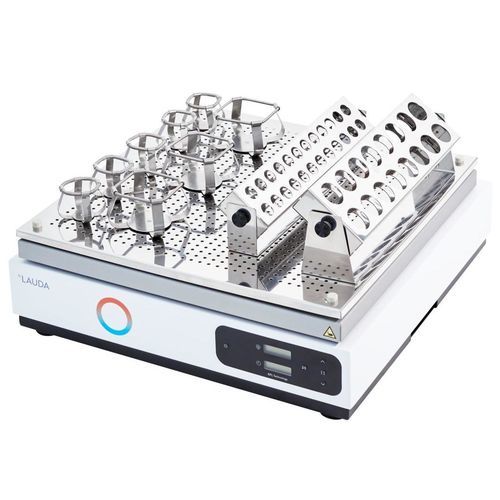

LAUDA Varioshake VS 15 B orbital shaker for laboratory use. Compact unit with bidirectional orbital motion, microprocessor control and OLED frequency display. Designed for continuous operation; worksurface up to 676 x 540 mm and maximum load 15 kg.

Key features

• Bidirectional orbital motion in a compact, low-noise design
• User-friendly microprocessor control with membrane keypad
• Shaking table made of anodized aluminium with four plastic pins
• Constant speed independent of load with soft-start
• Digital OLED frequency display and setting in 1.0 rpm steps
• Overload-protected AC motor drive and mass-balanced mechanism for stability
• Timer adjustable from 1 min to 99:59 h or continuous operation
• Suitable for continuous use and low-wear operation

Technical data
Ambient temperature range: 10 ... 50 °C
Max. power consumption: 0.07 kW
Shaking amplitude: 30 mm
Shaking frequency: 20 ... 300 1/min
Max. load: 15 kg
Dimensions (WxDxH): 480 x 487 x 160 mm
Weight: 18 kg
Power plug: Power cord with angled plug (CEE7/7)
Power supply: 230 V; 50 Hz

Accessories & notes

• Shaking table in anodized aluminium; optional accessories available (illustrations may show options)
• Mass balancing ensures a secure stand during continuous operation

Ordering information
Order number: L003062
