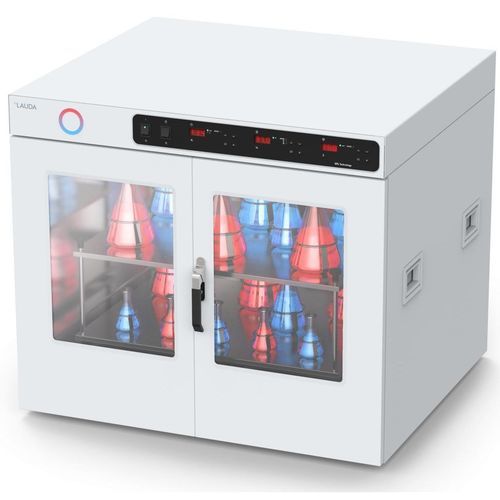

Shaking laboratory incubator Varioshake VS 150 OI

for scientific researchbenchtopstainless steel

Product description
The LAUDA Varioshake VS 150 OI is an orbital shaking incubator designed for reproducible temperature-controlled shaking applications in research and laboratory workflows. It offers a usable volume of 157 L, precise temperature stability of ±0.2 K and a compact shaking platform suitable for a wide range of vessels.

Features

• Orbital shaking incubator for precise, reproducible mixing and incubation
• Membrane keyboard with clear symbols for intuitive operation
• Frame for holding two shaking trays (single tray for vessels > 180 mm)
• Timer adjustable from 1 minute up to 999 hours with remaining-time display
• Optional cooling coil for operation below ambient temperature
• RS-232 serial interface for reliable data transfer
• Constant speed independent of load; overload-protected AC motor
• Digital LED display for temperature with 0.1 °C resolution and PID temperature control
• Interior lighting and automatic stop of shaking/heating when door is opened
• Interior, door inner surfaces and shaking table made of stainless steel
• Additional electromechanical temperature limiter and configurable over-/under-temperature alarms (optical and acoustic)
• Compact, low-wear drive with mass balancing for stable operation and continuous use
• User-friendly microprocessor control

Working range
Min. working temperature: 28 °C
Max. working temperature: 70 °C
Temperature stability: ±0.2 K

Technical data (according to DIN 12876)
Working temperature range: 28 ... 70 °C
Working temperature range with water cooling: 20 ... 70 °C
Ambient temperature range: 10 ... 30 °C
Heater power max.: 0.5 kW
Max. power consumption: 0.8 kW
Shaking amplitude: 25 mm
Shaking frequency: 20 ... 250 1/min
Max. load: 20 kg
Usable volume: 157 L
Interior dimensions (W x D x H): 674 x 540 x 430 mm
Dimensions (W x D x H): 930 x 890 x 820 mm
Weight: 150 kg
Power plug: Power cord with angled plug (CEE7/7)
Power supply: 230 V; 50/60 Hz

Accessories (examples)

• Adhesive mat for shaking platform or tray
• Shaking tray
• Rack for 24 tubes

Specifications

• Model: Varioshake VS 150 OI
• Usable volume: 157 L
• Interior dimensions (W x D x H): 674 x 540 x 430 mm
• Overall dimensions (W x D x H): 930 x 890 x 820 mm
• Working temperature range: 28 ... 70 °C (20 ... 70 °C with water cooling)
• Temperature stability: ±0.2 K
• Shaking amplitude: 25 mm
• Shaking frequency: 20 ... 250 1/min
• Max. load: 20 kg
• Heater power max.: 0.5 kW; Max. power consumption: 0.8 kW
• Power supply / plug: 230 V; 50/60 Hz / Power cord with angled plug (CEE7/7)
• Weight: 150 kg
