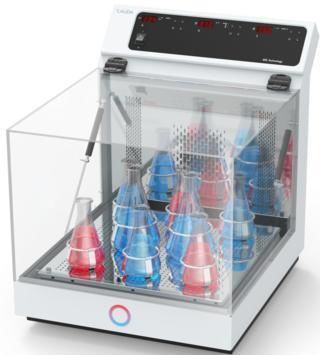

Orbital laboratory shaker Varioshake VS 60 OI

digitalfor general purposesbenchtop

Product overview
The Varioshake VS 60 OI is an orbital shaking incubator from the LAUDA Varioshake product line designed for controlled temperature and reproducible orbital agitation in laboratory workflows. Usable volume: 68 L; interior dimensions: 450 x 450 x 338 mm; temperature stability: ±0.2 K.

Key features

• Orbital shaking movement for precise and reproducible agitation
• Membrane keyboard with clear symbols
• Microprocessor-controlled timer with remaining-time display and acoustic signal (1 min–999 h)
• Cooling coil for operation below ambient temperature
• RS232 serial interface for data transfer
• Constant speed independent of load
• LED digital temperature display and setting in 0.1 °C increments
• PID temperature control with additional electromechanical temperature limiter
• Automatic stop of shaking and heating when doors are opened
• Overload-protected AC drive motor with mass-balanced, low-wear mechanism
• Hinged acrylic glass hood
• Outer housing: electrolytically galvanized sheet steel, powder-coated
• Alarm limits for over- and under-temperature (optical and acoustic) configurable

Working range

• Minimum working temperature: 28 °C
• Maximum working temperature: 70 °C
• Working temperature range with water cooling: 20 … 70 °C
• Temperature stability: ±0.2 K

Technical data (according to DIN 12876)

• Model / product line: Varioshake VS 60 OI
• Usable volume: 68 L
• Interior dimensions (WxDxH): 450 x 450 x 338 mm
• Overall dimensions (WxDxH): 559 x 687 x 628 mm
• Shaking amplitude: 30 mm
• Shaking frequency: 20 – 250 rpm (1/min)
• Working temperature range: 28 … 70 °C (20 … 70 °C with water cooling)
• Temperature stability: ±0.2 K
• Heater power (max.): 0.5 kW
• Max. power consumption: 0.65 kW
• Power supply / plug: 230 V; 50/60 Hz — Power cord with angled plug (CEE7/7)
• Shaking amplitude: 30 mm
• Weight: 54 kg
• Control / display: LED digital display, PID temperature control, microprocessor timer (1 min – 999 h)
