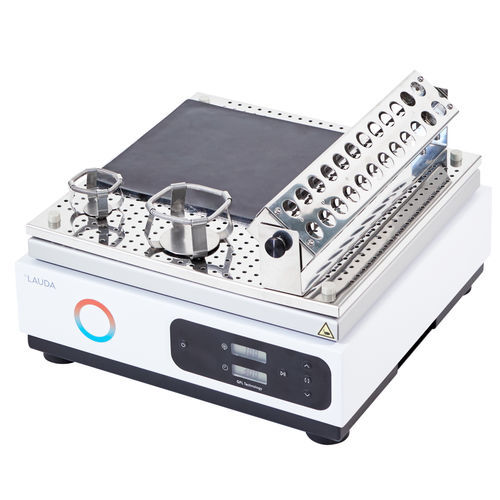

Orbital laboratory shaker Varioshake VS 8 B

digitalfor general purposesbenchtop

Overview
The Varioshake VS 8 B orbital shaker is a compact laboratory shaker for continuous use, offering a maximum load of 8 kg, a 20 mm shaking amplitude and a frequency range of 20–300 rpm. Digital controls and a low-wear mechanism make it suitable for routine mixing and agitation tasks.

Key features

• Bidirectional orbital motion in a compact, low-noise heavy-duty design
• Microprocessor control with membrane keypad and clear symbols
• OLED display for digital setting and readout (1.0 rpm steps) and soft-start
• Mass-balanced mechanism for stable operation and reduced wear
• Anodized aluminium shaking platform with four plastic pins; outer housing in powder-coated, electrolytically galvanized steel
• Constant speed independent of load; timer adjustable 1 min to 99:59 h or continuous operation
• Overload-protected AC motor; optional RS-232 interface on request
• Suitable for continuous operation in industrial and laboratory environments

Technical data

• Ambient temperature range: 10 ... 50 °C
• Max. power consumption: 0.07 kW
• Shaking amplitude: 20 mm
• Shaking frequency: 20 ... 300 1/min (set/display step 1.0 rpm)
• Max. load: 8 kg
• Dimensions (WxDxH): 350 x 355 x 160 mm
• Weight: 11 kg
• Power supply: 230 V; 50 Hz; power cord with angled plug (CEE7/7) — other plug variants available

Ordering & accessories

• Part number (displayed variant): L003058
• Variants for regional voltages and plugs (e.g. 115 V / 60 Hz with NEMA connector) available
• Compatible accessories: universal mount, adhesive mat, non-slip mat for shaking platform
