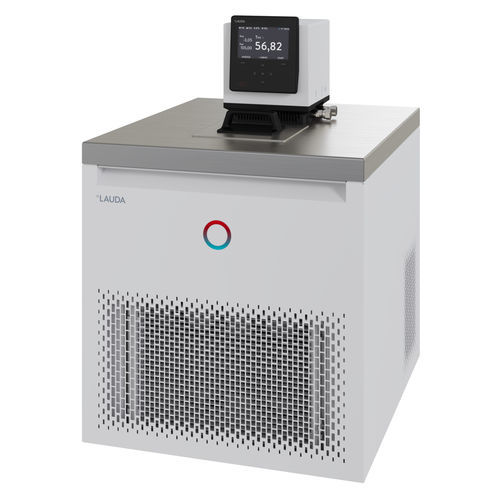

WLAN thermostat Universa U 890 M

laboratorybenchtopdigital

Product description
The Universa PRO and Universa MAX cooling thermostats are equipped with a bath cover and pump connections as standard. A drain valve on the front of the device behind the ventilation grid makes it easier to change the temperature control fluid safely.

Features

• Bath circulation thermostat with advanced electronics ensures precise control accuracy
• Focus on safety: The dedicated Tmax button provides convenient access to the essential overtemperature protection setting during commissioning
• Highly efficient refrigeration technology: Combination of speed-controlled inverter compressor and capacity control by means of electronic expansion valves and speed-controlled fans - improved energy efficiency and reduced operating costs; increased service life by avoiding frequent switch-on and switch-off cycles; dynamic approach to the set temperature; quieter operation
• Extensive functionality with programmer, safe mode, calibration options, controller self-adaptation and weekly planner for precise and flexible process control
• Wireless communication: Integrated WLAN enables effortless connection with PC, tablet and smartphone
• Future-proof thanks to modularity: LAUDA Universa with interchangeable control head and heating/cooling base allows flexible adaptation to current and future requirements
• Versatile pressure-suction pump: LAUDA Varioflex pump with eight selectable performance levels, adjustable flow rate distribution for internal/external circulation for optimal volume flow and pressure
• Environmentally friendly refrigerants: Use of natural refrigerants for sustainable and environmentally conscious cooling
• Intelligent remote control and monitoring: Integrated web server for remote control via LAUDA Command app or browser; secured by PKI and 2-factor authentication; connection to LAUDA.LIVE for cloud-based data analysis and remote maintenance
• Comprehensive safety functions: Effective over- and under-level protection; adjustable overtemperature protection with acoustic alarm; automatic system diagnostics at start-up with alarm and error message display; smart temperature control media management with automatic limit value adjustment
• Clear overview, intuitive operation: 5-inch colour TFT display shows temperature values with progression graph, menu navigation in six languages and operating status icons; controlled via cursor and soft keys
• Easily accessible front switch on the control head allows pump output adjustment during operation
• Adaptive bath edge ventilation (patent application): Prevents icing and condensation, stops water entering the bath, blocks vapors to protect electronics
• Maximum networking: Standard Ethernet, USB and interface for external Pt100 plus eleven optional interface modules
• Integrated Wi-Fi communication: The device may only be imported and used in certified countries and regions: United States of America, Canada, EU including the UK and Switzerland, and India

Working range

• Min. working temperature: -90 °C
• Max. working temperature: 200 °C
• Temperature stability: 0.01 ± K

Technical data (according to DIN 12876)
Working temperature range: -90 ... 200 °C
Operating temperature range: -90 ... 200 °C
Ambient temperature range: 5 ... 40 °C
Temperature stability: 0.01 ± K
Max. power consumption: 3.8 kW
Current consumption: 16 A
Bath opening (WxD): 150 x 150 mm
Min. / max. bath volume: 5.0 / 8.0 L
Max. discharge pressure: 0,7 bar
Pump suction max.: 0,4 bar
Max. pump flow (pressure): 25 L/min
In / Outlet connection thread (outside): M16 x 1
In / Outlet Ø olives: 13 mm
Dimensions (WxDxH): 525 x 615 x 787 mm
Weight: 77 kg
Power supply: 200-240 V, 50/60 Hz
Power plug: Power cord with angled plug (CEE7/7)

Cooling capacity table
Temperature | Pump level | Tempering medium | Cooling capacity 50 Hz | Cooling capacity 60 Hz
200 °C | 8 | Thermal oil | 0.8 kW | 0.8 kW
100 °C | 8 | Thermal oil | 0.8 kW | 0.8 kW
20 °C | 8 | Ethanol | 0.8 kW | 0.8 kW
10 °C | 8 | Ethanol | 0.78 kW | 0.78 kW
0 °C | 8 | Ethanol | 0.74 kW | 0.74 kW
-10 °C | 8 | Ethanol | 0.72 kW | 0.72 kW
-20 °C | 4 | Ethanol | 0.72 kW | 0.72 kW
-30 °C | 4 | Ethanol | 0.68 kW | 0.68 kW
-40 °C | 4 | Ethanol | 0.64 kW | 0.64 kW
-50 °C | 4 | Ethanol | 0.6 kW | 0.6 kW
-60 °C | 4 | Ethanol | 0.46 kW | 0.46 kW
-70 °C | 4 | Ethanol | 0.28 kW | 0.28 kW
-80 °C | 4 | Ethanol | 0.12 kW | 0.12 kW
-90 °C | 4 | Ethanol | 0.02 kW | 0.02 kW

Caractéristiques / spécifications techniques

• Model: Universa U 890 M
• Part no.: L003755 (product page variant identifier)
• Working temperature range: -90 … 200 °C
• Temperature stability: 0.01 ± K
• Bath volume: 5.0 – 8.0 L
• Bath opening (WxD): 150 x 150 mm
• Max. pump flow: 25 L/min; Max. discharge pressure: 0,7 bar
• Power supply: 200-240 V, 50/60 Hz; Max. power consumption: 3.8 kW; Current: 16 A
• Dimensions (WxDxH): 525 x 615 x 787 mm; Weight: 77 kg
• In/Outlet connection: M16 x 1 (13 mm olives)
