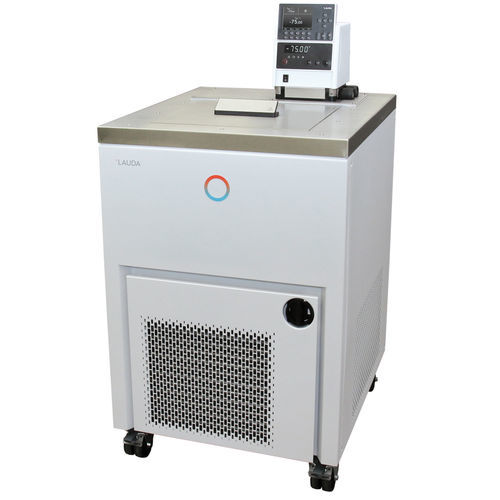

Laboratory thermostat Proline Kryomate RP 4090 CW

floor-standingdigitalelectronic

Product description
The Proline Kryomate RP 4090 CW is a thermostatic bath and circulator with integrated cooling (water-cooled condenser). Available in air- and water-cooled versions, it offers large bath openings and nominal bath volumes between approx. 30 and 40 liters, suitable for demanding laboratory and industrial temperature control tasks.

Features

• Microprocessor-controlled thermostatic bath with integrated cooling system
• Input via cursor keys and numeric soft keys; additional Tmax key for overtemperature
• SelfCheck Assistant for system diagnosis and fault indication
• Low-level and overtemperature protection for use with non-flammable liquids
• Programmer: up to 150 temperature/time segments, up to 5 separable programs
• Adjustable bath circulation to suit the application
• SmartCool energy-saving digital cooling management with compressor on/off control
• Uses conventional refrigerants (HFCs) in compliance with EU Regulation 573/2024 on F-gases
• Back-lit graphic LCD with multiple display modes
• Detachable command console for remote operation
• Fully electronic continuous PID controller for internal and external control
• Optically isolated RS-232/485 interface integrated as standard
• Timer function for delayed switch-on, standby or program execution
• Accessible pump connectors (side and rear) and installed bypass
• Electronically controlled heating of bath edge and bridge to prevent condensation and freezing
• Additional green LED temperature display
• EasyUse system for simplified operation
• PowerAdapt system to optimise available supply power
• Upgradeable with up to 2 additional interfaces (RS-232/485, Profibus, analogue/contact modules, Ethernet-USB)
• LAUDA Vario pump with 4 selectable output steps; option for an additional external pump (thread M38x1.5 O)
• Condenser cooling: water

Working range
Min. working temperature: -90 °C
Max. working temperature: 120 °C
Temperature stability: 0.05 ± K

Technical data (according to DIN 12876)

• Working temperature range: -90 … 120 °C
• Ambient temperature range: 5 … 40 °C
• Temperature stability: 0.05 ± K
• Heater power (max): 3.5 kW
• Max. power consumption: 7 kW
• Current consumption: 16 A
• Max. discharge pressure: 0.9 bar
• Max. pump flow: 90 L/min
• Bath volume (min / max): 32.0 / 44.0 L
• Recommended cooling water temperature: 15 °C
• Cooling water flow rate: 11.7 L/min
• Maximum cooling water pressure: 10 bar
• Dimensions (W×D×H): 600 × 700 × 1216 mm
• Weight: 160 kg
• Power supply: 400 V; 3/N/PE; 50 Hz
• Power plug: Power cord with plug (IEC 60309, 5-pin, CEE, red, 16 A)

Cooling capacity (50 Hz)

• 200 °C | Pump level 2 | Thermal oil | 4 kW
• 20 °C | Pump level 2 | Ethanol | 3.9 kW
• 0 °C | Pump level 2 | Ethanol | 3.6 kW
• -20 °C | Pump level 2 | Ethanol | 3 kW
• -30 °C | Pump level 2 | Ethanol | 2.6 kW
• -40 °C | Pump level 2 | Ethanol | 1.9 kW
• -50 °C | Pump level 2 | Ethanol | 1.5 kW
• -60 °C | Pump level 2 | Ethanol | 1.2 kW
• -70 °C | Pump level 2 | Ethanol | 0.7 kW
• -80 °C | Pump level 2 | Ethanol | 0.4 kW
• -90 °C | Pump level 2 | Ethanol | 0.05 kW

Note
Bath openings and volumes: approx. 30–40 L (air- and water-cooled versions).

Technical specifications

• Model line: Proline Kryomats
• Model: RP 4090 CW
• Bath volume (min / max): 32.0 L / 44.0 L
• Temperature range: -90 … 120 °C
• Temperature stability: 0.05 ± K
• Heater power (max): 3.5 kW
• Max. power consumption: 7 kW
• Current consumption: 16 A
• Max. discharge pressure: 0.9 bar
• Max. pump flow: 90 L/min
• Recommended cooling water temperature: 15 °C
• Cooling water flow rate: 11.7 L/min
• Maximum cooling water pressure: 10 bar
• Dimensions (W×D×H): 600 × 700 × 1216 mm
• Weight: 160 kg
• Power supply: 400 V; 3/N/PE; 50 Hz
• Power plug: IEC 60309, 5-pin, CEE, red, 16 A
