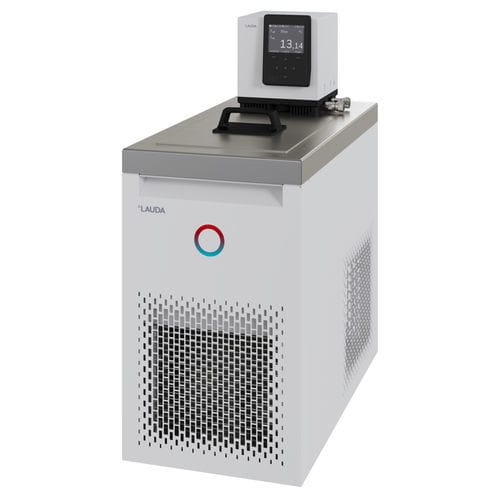

Laboratory thermostat Universa U 1635 P

modularbenchtopdigital

Product description
The Universa U 1635 P is a bath circulation thermostat designed for precise temperature control in laboratory and industrial tempering applications. It features a bath cover, pump connections and a front drain valve for safe and easy fluid changes.

Features

• Bath circulation thermostat with advanced electronics for high control accuracy (temperature stability 0.02 ± K)
• Dedicated Tmax button for quick access to overtemperature protection during commissioning
• Energy-efficient refrigeration: capillary tube technology with speed-controlled inverter compressor and fan
• Integrated programmer, calibration options and weekly scheduler for flexible process control
• Wireless and network communication: integrated WLAN, Ethernet and USB; secure remote access via LAUDA Command app and LAUDA.LIVE cloud connectivity
• Modular design with interchangeable control head and heating/cooling base for future upgrades
• Efficient vario pump with six adjustable levels; flexible flow distribution for internal and external circulation
• Use of natural refrigerants for environmentally conscious cooling
• Comprehensive safety: float low-level protection, adjustable overtemperature protection with acoustic alarm, automatic limit-value adaption for tempering media
• 3.5" colour TFT display with progress graph, intuitive menu navigation and softkey control
• Adaptive bath-edge ventilation (patent pending) to prevent icing, condensation and vapor ingress
• Eleven optional interface modules for expanded communication needs; Wi‑Fi use restricted to certified countries/regions

Working range
Min. working temperature: -35 °C
Max. working temperature: 200 °C
Temperature stability: 0.02 ± K

Technical data (according to DIN 12876)

• Working temperature range: -35 … 200 °C
• Operating ambient temperature: 5 … 40 °C
• Current consumption: 12 A
• Bath opening (WxD): 200 x 300 mm
• Bath volume (min / max): 11.0 L / 16.5 L
• Max. discharge pressure: 0.6 bar
• Max. pump flow: 22 L/min
• In/Outlet connection thread (outside): M16 x 1
• Dimensions (WxDxH): 310 x 610 x 736 mm
• Weight: 41 kg
• Power supply: 220-240 V; 50/60 Hz (angled power cord CEE7/7)

Cooling capacity (selection)
Temperature | Pump level | Tempering medium | Cooling capacity 50 Hz | Cooling capacity 60 Hz
200 °C | 6 | Thermal oil | - | -
100 °C | 6 | Thermal oil | - | -
20 °C | 6 | Ethanol | 0.5 kW | 0.5 kW
10 °C | 6 | Ethanol | 0.47 kW | 0.47 kW
0 °C | 6 | Ethanol | 0.43 kW | 0.43 kW
-10 °C | 6 | Ethanol | 0.37 kW | 0.37 kW
-20 °C | 3 | Ethanol | 0.15 kW | 0.15 kW
-30 °C | 3 | Ethanol | 0.05 kW | 0.05 kW
-35 °C | 3 | Ethanol | 0.02 kW | 0.02 kW


Characteristics / technical specifications

• Model / Denomination: Universa U 1635 P
• Part no.: L003902
• Working temperature range: -35 … 200 °C
• Temperature stability: 0.02 ± K
• Bath opening (WxD): 200 x 300 mm
• Bath volume (min / max): 11.0 / 16.5 L
• Max. pump flow: 22 L/min
• Max. discharge pressure: 0.6 bar
• In/Outlet thread: M16 x 1
• Dimensions (WxDxH): 310 x 610 x 736 mm
• Weight: 41 kg
• Integrated communication: WLAN, Ethernet, USB; optional interface modules available
• Safety features: float low-level protection, adjustable overtemperature protection with acoustic alarm
• Refrigeration: capillary tube technology with speed-controlled inverter compressor and fan
