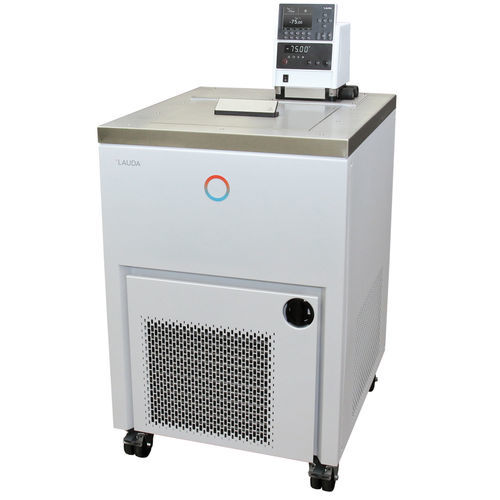

Laboratory thermostat Proline Kryomate RP 4050 CW

on castersdigitalelectronic

Description
The Proline Kryomats RP 4050 CW is a thermostatic bath/circulator with integrated water-cooled condenser, designed for temperature control and circulation of thermal media in industrial and laboratory applications. It offers large bath openings and a bath volume range suitable for sample processing and component tempering between -50 °C and 200 °C.

Key features

• Microprocessor-controlled thermostatic bath with integrated cooling system
• Intuitive input via cursor keys and numeric soft keys; Tmax key for overtemperature
• SelfCheck Assistant for automated system diagnosis
• Low-level and overtemperature protection for operation with non-flammable fluids
• Programmer: 150 temperature/time segments, up to 5 separate programs
• Adjustable bath circulation to match application requirements
• Electronically controlled heating at bath edge and bridge to prevent condensation and freezing
• High-resolution back-lit graphic LCD with multiple display modes
• Detachable command console for remote operation
• Fully electronic continuous PID controller for internal and external regulation
• Optically isolated RS‑232/485 interface as standard
• Timer function for switch-on, standby or program execution
• Side and rear pump connectors with installed bypass
• Additional green LED temperature display
• EasyUse system for simplified operation of the unit
• PowerAdapt system to optimise available heater power from the supply
• Upgradeable with up to 2 additional interfaces (RS‑232/485, Profibus, analogue or contact modules, Ethernet‑USB)
• LAUDA Vario pump with 4 selectable output steps
• SmartCool energy-saving digital cooling management with compressor on/off control
• Uses HFC refrigerants in compliance with EU Regulation (F-gases) 573/2024

Working range

• Minimum working temperature: -50 °C
• Maximum working temperature: 200 °C
• Temperature stability: 0.05 ± K

Technical data (according to DIN 12876)

• Working temperature range: -50 … 200 °C
• Ambient temperature range: 5 … 40 °C
• Temperature stability: 0.05 ± K
• Heater power (max.): 3.5 kW
• Maximum power consumption: 5 kW
• Current consumption: 16 A
• Max. discharge pressure: 0.5 bar
• Max. pump flow: 19 L/min
• Bath volume (min/max): 32.0 / 44.0 L
• Recommended cooling water temperature: 15 °C
• Cooling water flow rate: 11.7 L/min
• Maximum cooling water pressure: 10 bar
• Dimensions (W×D×H): 600 × 700 × 1216 mm
• Weight: 124 kg
• Power supply (example): 400 V; 3/N/PE; 50 Hz
• Power plug: IEC 60309, 5‑pole, CEE, red, 16 A (power cord with plug)

Cooling capacity (50 Hz)

• 200 °C — Pump level 2 — Thermal oil — 6 kW
• 20 °C — Pump level 2 — Ethanol — 6 kW
• 0 °C — Pump level 2 — Ethanol — 3.5 kW
• -20 °C — Pump level 2 — Ethanol — 1.8 kW
• -30 °C — Pump level 2 — Ethanol — 1.1 kW
• -40 °C — Pump level 2 — Ethanol — 0.6 kW
• -50 °C — Pump level 2 — Ethanol — 0.25 kW

Includes / Options

• Standard: microprocessor control, PID controller, RS‑232/485 interface, LAUDA Vario pump, SmartCool management
• Optional: additional interfaces (Profibus, analogue/contact modules, Ethernet‑USB), upgradeable communication modules
