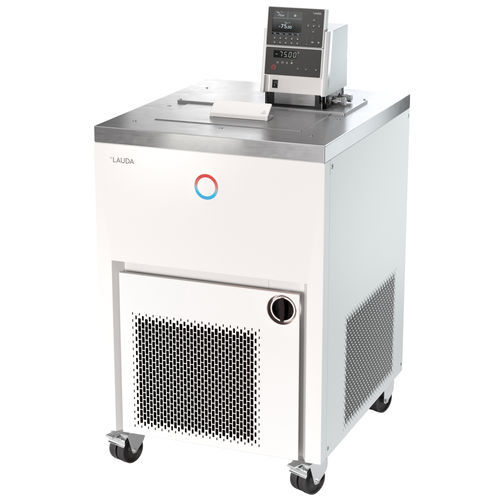

Laboratory thermostat Proline Kryomate RP 3090 C

floor-standingdigitalelectronic

Product overview The Proline Kryomate RP 3090 C is a thermostatic bath/circulator designed for industrial and laboratory temperature control with integrated cooling. It features a large bath opening and a nominal bath volume range suited to applications requiring precise control from deep cryogenic to elevated temperatures.

Features

• Thermostatic bath/circulator with microprocessor control and integrated cooling system (air-cooled or water-cooled versions)
• Input via cursor keys and numeric soft keys; additional Tmax key for overtemperature protection
• SelfCheck Assistant for system diagnostics
• Low-level and overtemperature protection for use with non-flammable liquids
• Programmer: 150 temperature/time segments, up to 5 separate programs
• Adjustable bath circulation to match application requirements
• Electronically controlled heating of bath edge and bridge to prevent condensation and freezing
• Uses permitted HFC refrigerants in accordance with EU regulation (F-gases) 573/2024
• Back-lit graphic LCD with multiple display modes
• Detachable command console for remote operation
• Fully electronic continuous controller with PID control for internal and external regulation
• Optically isolated RS‑232/485 interface as standard
• Timer for switch-on, standby or program execution
• Pump connectors on side and rear; installed bypass
• Condenser cooling: Air
• Additional green LED temperature display
• EasyUse system for simplified operation
• PowerAdapt system to maximise usable heating within power-supply limits
• Upgradeable with up to two interfaces (RS‑232/485, Profibus, analogue/contact modules, Ethernet‑USB)
• LAUDA Vario pump with 4 selectable output steps
• SmartCool energy-saving digital cooling management with compressor on/off control
• Additional pump for external application (Thread M38x1.5 O)

Working range

• Min. working temperature: -90 °C
• Max. working temperature: 120 °C
• Temperature stability: 0.05 ± K

Cooling capacity (50 Hz)

• 200 °C — Pump level 2 — Thermal oil — 3 kW
• 20 °C — Pump level 2 — Ethanol — 2.9 kW
• 0 °C — Pump level 2 — Ethanol — 2.8 kW
• -20 °C — Pump level 2 — Ethanol — 2.4 kW
• -30 °C — Pump level 2 — Ethanol — 2.2 kW
• -40 °C — Pump level 2 — Ethanol — 1.9 kW
• -50 °C — Pump level 2 — Ethanol — 1.5 kW
• -60 °C — Pump level 2 — Ethanol — 1.2 kW
• -70 °C — Pump level 2 — Ethanol — 0.7 kW
• -80 °C — Pump level 2 — Ethanol — 0.4 kW
• -90 °C — Pump level 2 — Ethanol — 0.05 kW

Technical data (according to DIN 12876)

• Working temperature range: -90 … 120 °C
• Ambient temperature range: 5 … 40 °C
• Temperature stability: 0.05 ± K
• Heater power max.: 3.5 kW
• Max. power consumption: 7 kW
• Current consumption: 16 A
• Max. discharge pressure: 0.9 bar
• Max. pump flow: 90 L/min
• Min. / max. bath volume: 23.0 / 31.0 L
• Dimensions (WxDxH): 600 x 700 x 1216 mm
• Weight: 162 kg
• Power supply: 400 V; 3/N/PE; 50 Hz
• Power plug: Power cord with plug (IEC 60309, 5‑pole, CEE, red, 16 A)

Model / specifications

• Model: Proline Kryomate RP 3090 C
• Working temperature range: -90 … 120 °C
• Temperature stability: 0.05 ± K
• Bath volume: 23.0 / 31.0 L
• Heater power (max): 3.5 kW
• Max. power consumption: 7 kW
• Current consumption: 16 A
• Max. pump flow: 90 L/min
• Max. discharge pressure: 0.9 bar
• Dimensions (WxDxH): 600 x 700 x 1216 mm
• Weight: 162 kg
• Power supply / plug: 400 V; 3/N/PE; 50 Hz / IEC 60309, 5‑pole, CEE, red, 16 A
