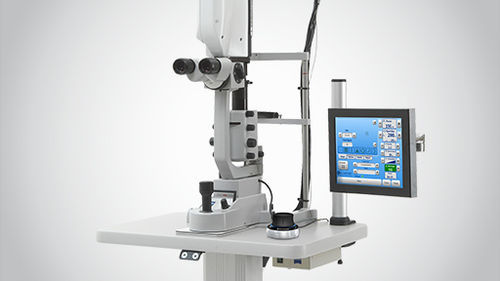

Retinal photocoagulation laser ArrayTM LaserLinkTM

ophthalmicKTPdiode

Overview
Array LaserLink™ by Lumenis is a pattern scanning laser delivery system that adds automated pattern capability to photocoagulation lasers and reduces treatment time. It supports single-spot and pattern modes with selectable spot sizes and spacings for slit-lamp ophthalmic procedures.

Examples of Scan Pattern Shapes

• Square: 2 to 5 spots per side
• Line: 2 spots in one line up to 4 spots in each of 5 lines
• Triangle: 6 or 15 spots
• Circle: single adjustable ring
• Quarter circle: 1 or 3 adjustable arcs
• Half circle: 1 or 3 adjustable arcs

Features & Benefits

• Continuously variable spot size: single spot 50 µm–1000 µm; pattern mode 100 µm–500 µm
• Multiple adjustable patterns: single spot plus six shapes (square, line, triangle, circle, quarter circle, half circle)
• Selectable spot spacing: within circle 0–3× spot diameter; other patterns 0.25–3× spot diameter
• Up to 5 preset protocols: memory for lens selection, laser power, spot size, spacing, number of spots and duration
• New Generation Clearview filters: photopic-balanced coating to reduce color distortion
• Patented SureSpot™ optics: maintains retinal focal point and minimizes corneal/lens energy density
• Eyes-Forward control: verify and adjust parameters without leaving slit-lamp oculars
• Array 3D micromanipulator: controls laser parameters and micromanipulation; adjustable for left or right hand
• Heads-Up Display: shows modified parameters as text on the retina
• Intuitive touchscreen and custom touchpad: logical workflow; touchpad provides eyes-forward control and is repositionable for right/left hand
• Frame Mode: outlines treatment area prior to delivery
• Titrate Mode: establish pattern laser parameters using single-spot testing
• Contact Lens menu: common lenses for calculation of retinal spot size

Compatibility

• Links with Lumenis lasers: Vision One, Novus Spectra
• Attaches to common slit lamps: examples include Lumenis 980, Lumenis 990*, Zeiss SL130, Zeiss 30SL, Haag-Streit 900 BQ*

Treatment Options

• Single spot
• Pulse mode
• Pattern scanning modes (preset and customizable patterns and spacings)

Notes

• Spot size ranges: single spot 50 µm–1000 µm; pattern mode 100 µm–500 µm
• *Some attachments may be released later

Technical specifications

• Brand: Lumenis
• Model: Array LaserLink™
• Product type: Pattern scanning laser delivery system / photocoagulator accessory
• Single-spot size range: 50 µm – 1000 µm
• Pattern scanning size range: 100 µm – 500 µm
• Wavelengths available: Green 532 nm; Yellow 577 nm; Red 659 nm
• Treatment modes: Single spot, Pulse mode, Pattern scanning (multiple shapes and densities)
• Selectable spot spacing: 0 to 3× spot diameter (within circle); 0.25 to 3× spot diameter (other patterns)
• Preset protocols: Up to 5; memory for lens selection, power, spot size, spacing, number of spots and duration
• Optics: Patented SureSpot™ optics; New Generation Clearview filters (photopic balanced coating)
• Control/interface: Intuitive touchscreen, custom touchpad (eyes-forward control), Heads-Up Display
• Manipulator: Array 3D micromanipulator (adjustable for left/right hand)
• Compatibility: Attaches to Lumenis Vision One, Novus Spectra and to common slit lamps (examples listed above)
• Reference code: PB-2006798 Rev A
