Retinal photocoagulation laser Novus Spectra®

ophthalmicsolid-statediode

Notice
The Novus Spectra® is no longer available for sale.

Product overview

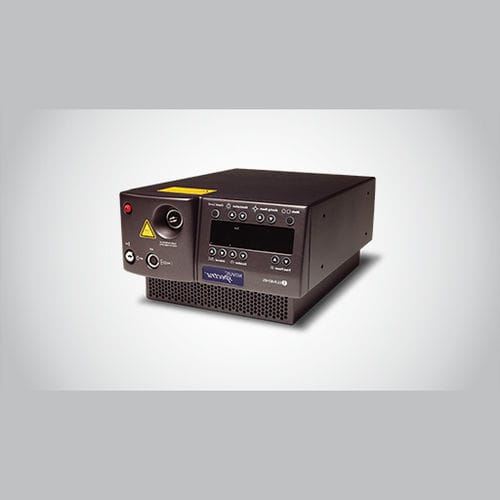

The Novus Spectra® is a diode‑pumped solid‑state (DPSS) ophthalmic photocoagulator delivering up to 2.5 W optical output at 532 nm. The system features active resonator temperature control for stable beam output and is designed for both operating room and outpatient clinic use. It supports multiple delivery devices for slit‑lamp and intraocular procedures.

Key features

• DPSS technology delivering up to 2.5 W from a compact console
• Active resonator temperature control for consistent beam stability
• Compatibility with slit‑lamp adapters, Laser Indirect Ophthalmoscopes and endophotocoagulation probes
• Scanner‑ready capability with multiple scan patterns
• Air‑cooled system for continuous clinical operation

OR features

• Ergonomic compact OR cart with integrated accessory storage
• Comprehensive endo probe selection: standard, straight, curved, aspirating, illuminating and stepped — available in 20, 23 and 25 gauge
• Endo Kit and microscope eye safety with Lumenis ClearView™ filters
• PowerEase™ footswitch for hands‑free power adjustment
• Choice of Laser Indirect Ophthalmoscope models (Heine™ and Keeler™)

Clinic features

• Compatible with common slit lamps via Laserlink slit lamp adapters (including Laserlink Z‑1000)
• Compact, lightweight design to optimize clinic space
• Patented SureSpot™ optics for accurate retinal spot focusing and reduced anterior‑segment power density
• Remote control with illuminated keypad for convenient parameter entry

Novus Spectra advantage

• Homogeneous laser spot and uniform energy distribution to minimize hot spots
• ClearView™ filters for balanced photopic coating and accurate colour rendering
• User‑oriented control panel and illuminated remote; optional PowerEase™ and Smart™ footswitches

Delivery systems & compatibility

• Laserlink Z‑1000 slit lamp adapter (for Zeiss SL models and equivalents)
• Converging‑Optics Laserlink adapters
• Compatibility with Keeler™ and Heine™ Laser Indirect Ophthalmoscopes (LIO)
• Extensive endophotocoagulation probe options for intraocular delivery

Technical specifications

• Laser system: Diode‑pumped solid‑state (DPSS)
• Wavelength: 532 nm
• Pulse duration: 0.01–3.0 seconds
• Pulse rate: 0.05–1.0 seconds and single pulse
• Energy (endo‑ocular probe): 50 mW–2500 mW
• Spot size: 50–1000 µm (Laserlink Z‑1000); 50–500 µm (Converging‑Optics)
• Aiming beam: 635 nm nominal, adjustable intensity, < 1.0 mW
• Cooling: Air‑cooled
• Power requirements: 110 VAC, < 6 A, 50/60 Hz or 220 VAC, < 3 A, 50/60 Hz, single phase
• Console dimensions (single port): 15.2 cm x 25.4 cm x 35.6 cm; (dual port): 15.2 cm x 25.4 cm x 37.5 cm
• Weight: ~8 kg
