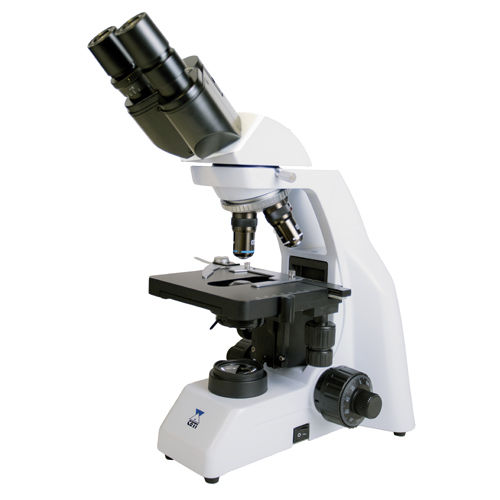

Compound microscope Ceti Max III

laboratorySiedentopf typeachromatic

Ceti’s Max III Binocular Compound Microscope with Achromatic Objectives and Halogen Illumination is known for its robust construction and simple operation. This durable microscope is an excellent choice for carrying out everyday applications, especially in teaching laboratories. It is equipped with four high clarity Achromatic objectives. This microscope also has widefield 10x eyepieces, a quadruple reversed nosepiece, mechanical stage and brightfield Abbe condenser. With 20W Halogen illumination, this microscope can produce dramatic and high quality images. Equipped with four high clarity Achromatic objectives. This microscope also has widefield 10x eyepieces, a quadruple reversed nosepiece, mechanical stage and brightfield Abbe condenser. Optical Head Binocular with photo port, inclined at 45° Interpupillary distance adjustment (Siedentopf type): 47 to 78mm Dioptre adjustment on one eyepiece Eyepieces: 10x / 18mm widefield (pointer in one eyepiece) Nosepiece: Quadruple reversed, revolving with click stop Objectives: 4x, 10x, 40x and 100x (oil) Achromatic Condenser: Brightfield Abbe – N.A. 1.25, precentred, focusable with iris diaphragm and filter holder Stage: 160 x 140mm with built-in mechanical stage and slide holder, 75 x 50mm movement, Vernier scale Focusing Knobs: Coaxial coarse and fine with stop Illumination: 20W Halogen Mains Power: 100 – 240V, 50 / 60Hz Supplied With: Immersion oil (5ml), blue filter, spare bulb, dust cover, power cord with unique ‘self-store’ system and instruction manual
