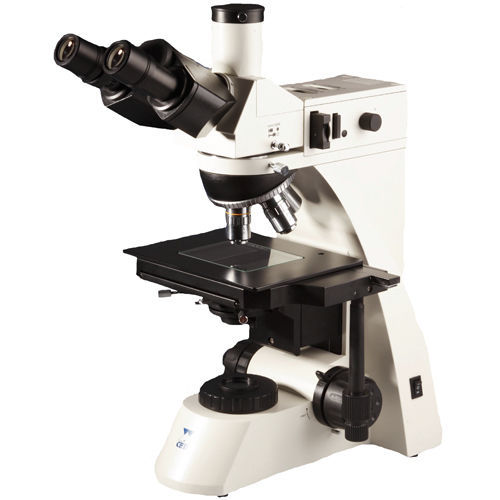

The Ceti Magtex Materials and Biological Microscope is based on the standard Magnum microscope in trinocular configuration using both transmitted and reflected illumination.
Description
The Ceti Magtex Materials and Biological Microscope is based on the standard Magnum microscope in trinocular configuration using both transmitted and reflected illumination. This enables the examination of both translucent and opaque materials. It is ideal for biological, geological, and engineering applications.
With its precision optics and robust design, this industrial microscope is the perfect solution for laboratory applications in the industrial sector that need to capture excellent images.
Features
• Sturdy base for comfortable viewing over long periods
• Widefield 10x / FN 20 eyepieces with dioptric adjustment
• Quintuple, reversed nosepiece with four Plan Achromatic objectives
• Trinocular
• Dual illumination (Reflected & Transmitted)
• Full Köhler illumination
Specification
Optical Head:
including vertical photo/video port (Ø 30mm) on sliding prism
Interpupillary Distance Adjustment (Siedentopf type): 53 to 75mm
Dioptric compensation on one eyepiece tube
Eyepieces:
10x/18mm wide-field
Nosepiece:
Quintuple reserved and revolving with click stop
Objectives:
5x, 10x, 20x, 50x Plan Achromatic (CCS Optics)
Iris diaphragm and filter holder
Centrable through a centring device
Focusable with rack and pinion height adjustment system
Stage:
Size 210 x 140mm with built-in mechanical stage and slide clip
Transversal and longitudinal adjustment by fingertip control
70mm transversal movement
50mm longitudinal movement
Nonius reading up to 0.1mm
