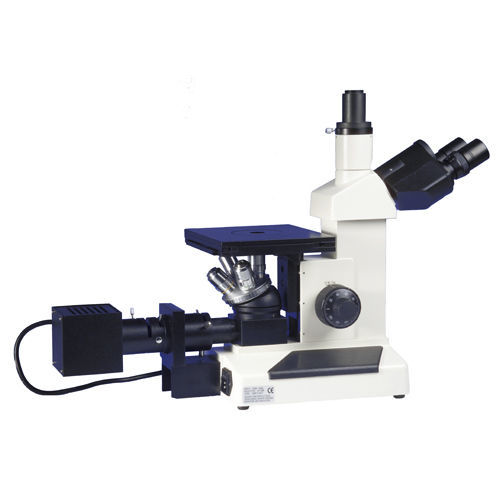

Inverted microscope Ferox

opticalfor materials researchtrinocular

Ceti’s Ferox Trinocular Inverted Materials Microscope is an inverted, trinocular reflected microscope which is ideal for geological and engineering applications. The quadruple nosepiece accepts the 4 reflected light objectives while the open stage ensures that there are no height or size limitations on the subject material. The rear facing external lamps housing protects both subject and user from adverse heating effects. Features Inverted, trinocular reflected microscope with quadruple nosepiece and rear facing external lamps. Specification Optical Head: Trinocular, inclined at 30° with vertical photo port Interpupillary Distance Adjustment (Siedentopf Type): 45 to 75mm Dioptric compensation on one eyepiece tube Photo/video port with beam splitting prism on sliding mount (0 – 100%) Eyepieces: 10x/18mm wide-field Nosepiece: Quadruple revolving with click-stop Objectives: 10x, 25x, 40x, 60x Plan Achromatic LWD Stage: Size 150 x 180mm with built-in mechanical stage Transversal movement: 14mm Longitudinal movement: 54mm Focusing: Coaxial coarse and fine Pre-focusing mechanism (on right side knob) Tension adjustment ring (on left side knob) Illumination: Halogen variable External housing with condensing lens and field diaphragm Iris diaphragm, centrable Filters: yellow, blue, green (Ø 32mm) Incident Light: 6V/20W (Halogen lamp) Supplied With: 1 spare bulb, 1 spare fuse, one stage clamp, dust cover, and instruction manual Polarisation: Includes simple polariser and analyser Main Power: 220 – 240V/50 – 60Hz (Euro connector) Converter: Built-in low voltage (6V – electronic) with light intensity control
