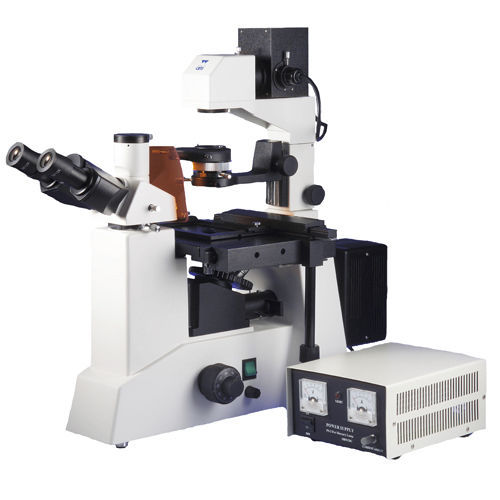

Ceti’s Inverso-TC Trinocular Inverted Microscope with Epi-Fluorescence Module has been designed to be used in quick and reliable everyday examinations.
Description
Ceti’s Inverso-TC Trinocular Inverted Microscope with Epi-Fluorescence Module has been designed to be used in quick and reliable everyday examinations. The surface of its built-in mechanical stage enables you to gain excellent visual access to the objective turret.
Features
Inverted Microscope with Epi-Fluorescence Module has been designed to be used in quick and reliable everyday examinations. Supplied with separate HBO 100W power supply.
Specification
Optical Head:
Trinocular, inclined at 30°
Interpupillary Distance Adjustment (Sidentopf Type): 53 to 75mm
Dioptric compensation on one eyepiece tube
Eye Pieces:
10x/22mm wide-field
Vertical photo/video port with beam-splitting prism on sliding mount (0 – 100%)
Objectives:
10x, 25x, 40x Plan Achromatic (Brightfield)
10x, 25x, 40x Plan Achromatic (Phase Contrast)
10x Annular Phase Plate
Centering telescope
Condenser:
Long working distance condenser with phase contrast – 55mm
Iris diaphragm
Working Distance: 30mm
Condenser centring device
Focusable with rack and pinion height adjustment system
Stage:
Size 205 x 220mm with built-in mechanical stage
Transversal Movement: 79mm
Longitudinal Movement: 112mm
Two interchangeable stage plates (maximum diameter 100mm)
Focusing Knobs:
Coaxial fine and coarse
Pre-focusing mechanism (on left knob)
Tension adjustment ring (on right knob)
Lamphouse:
Lamp holder adjustable
Transmitted light (6V/30W) and reflected light (100W/DC) mercury lamp
Power supply included
