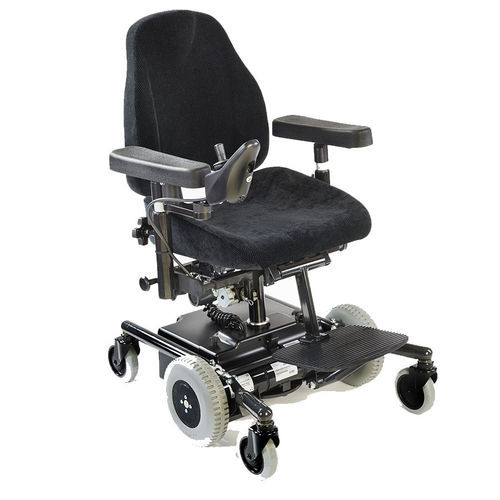

Electric wheelchair REAL 6100 Plus

indoorheight-adjustablereclining

Overview The REAL 6100 Plus is a compact, ergonomic indoor powered wheelchair with joystick control. With a 55 cm wheel-to-wheel width and mid-wheel drive, it is designed to manoeuvre in confined indoor environments such as homes, offices and schools while providing adjustable seating for clinical and daily-use needs.

Key features

• Electric seat height (High/Low) for access to different surface levels
• Electric tilt (optional) to aid transfers, pressure relief and comfort
• Made-to-measure seat system for a customised fit
• Weight-bearing footplate for additional support and stability
• Mid-wheel drive system that can turn on its own axis for superior manoeuvrability
• Easy-to-use joystick control (LYNX) with option for LiNX REM211 controller
• Bluetooth compatible

Seat sizes and adjustability Seat sizes range from 29 x 32 cm (W x D) up to 56 x 53 cm. Backrest sizes range from 27 x 22 cm (W x H) up to 50 x 60 cm. The seat, backrest and armrests are fully adjustable so the chair can be made to the exact size of the user. The modular seating system supports a wide variety of body shapes and clinical needs.

Applications Compact indoor powerchair suitable for work, relaxation and daily activities where improved mobility, independence and postural support are required. Designed for use in confined indoor spaces such as homes, offices, schools and healthcare facilities.

Technical specifications

• Max user weight – 150 kg
• Seat tilt – Yes
• Seat height – Low: 40–60 cm | High: 45–73 cm
• Total width – 570 mm
• Wheel-to-wheel width – 55 cm
• Length – 800 mm
• Wheel front/back – 125 mm
• Driving wheel – 210 mm
• Leg support length – 370–530 mm
• Seat width – 29 cm minimum, 56 cm maximum
• Seat depth – 29 cm minimum, 53 cm maximum
• Seat tilt ranges – -15° to +8°, -8° to +15°, 0° to +23° (as applicable)
• Back support height – 330–430 mm
• Back support angle – -15° to +45°
• Brake – Automatic
• LiNX REM211 Joystick Controller – can be fitted to either armrest
• Bluetooth compatible
• Mid-wheel drive for tight turning radius
• Made-to-measure seating and modular options
• Optional electric tilt and other accessories available
