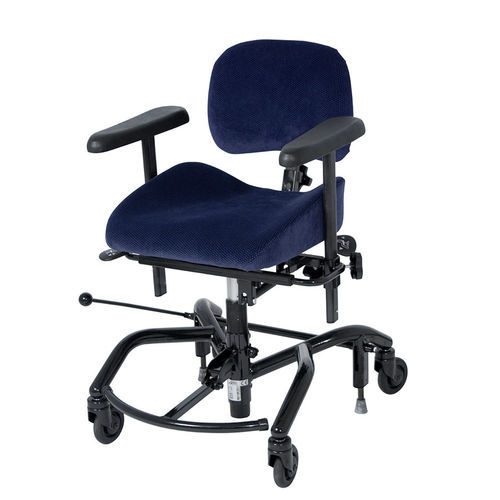

People with reduced mobility chair REAL 9000 PLUS

on castersmobilewith footrest

Product description
Tripod-style therapy chair for adolescents and adults. The REAL 9000 PLUS enables seated movement with limited leg strength. The castors provide mobility similar to a wheelchair; its particular benefit is lateral, side-stepping movement. The product is modular and can be configured in numerous ways to meet individual needs.

Main features

• Ergonomic options for all body sizes with a wide selection of cushions and accessories
• Mobility through lateral side-stepping movement thanks to low-roll castors and optimized frame
• Safety and support via a reliable parking brake
• Comfort through multiple adjustment options
• Durability and sustainability due to modular design

Details (short overview)
REAL 9000 PLUS (gas spring): Seat height adjustment by gas spring 40 - 60 cm or 32 - 46 cm (measured from floor to underside of seat cushion). Standard seat-angle mechanism increases seat height by 1 cm; seat-angle mechanism with 3 adjustment positions increases seat height by 2 cm. Maximum user weight: 140 kg. Seat-angle adjustment optional by gas spring (+15° forward / -8° backward or other adjustable ranges). Parking brake manual.

REAL 9000 PLUS EL (electric): Electric seat height adjustment 45 - 73 cm or 37 - 57 cm (measured from floor to underside of seat cushion). Standard seat-angle mechanism increases seat height by 1 cm; with 3 adjustment positions by 2 cm. Maximum user weight: 150 kg. Seat-angle adjustment optional by gas spring or electric (+15° / -8° etc.). Parking brake manual, optional electric.

Configuration & dimensions
Seat widths: 40, 44 or 48 cm*.
Seat depths: 39, 43, 48 or 53 cm*.
Back cushion width: between 27 and 46 cm*.
Back cushion height: between 20 and 43 cm* (adjustable).
Base frame center-to-center: 48 x 53 cm (W x D). Overall size with standard castors in travel direction approx. 52.5 x 63 cm (W x D). With manual parking brake add approx. 6 cm width; optional electric on REAL 9000 PLUS EL.
Optional accessories and options: headrest, abduction wedge, pommels, footrest / foot straps, push handle, electric brake (optional), power-assist propeller and other modular adjustments.

Possible applications

• Amputation
• Osteoarthritis, arthritis
• Gait impairment / mobility limitations
• Joint inflammation / joint pain
• Osteogenesis imperfecta (brittle bone disease)
• Care and therapy
• Rheumatism / rheumatoid arthritis / fibromyalgia
• Stroke
• Scoliosis
• Spasms / spasticity
• Osteoporosis
• Polyarthritis
• Postural / seating position problems
• Oversize / obesity (customized variants possible)

Characteristics / technical specifications

• Models: REAL 9000 PLUS (gas spring) and REAL 9000 PLUS EL (electric)
• Seat heights (gas spring): 40–60 cm or 32–46 cm (underside of seat cushion)
• Seat heights (electric): 45–73 cm or 37–57 cm (underside of seat cushion)
• Max. user weight: 140 kg (gas spring), 150 kg (EL)
• Seat-angle adjustment: optional by gas spring or electric; typical ranges +15° / -8° and other adjustable combinations
• Seat widths: 40 / 44 / 48 cm (other sizes on request)
• Seat depths: 39 / 43 / 48 / 53 cm (other sizes on request)
• Back cushion: width 27–46 cm, height 20–43 cm, adjustable
• Base / frame center-to-center: 48 x 53 cm (W x D); overall with std. castors approx. 52.5 x 63 cm (W x D)
• Brake: manual parking brake (optional electric on EL model)
• Options: headrest, abduction wedge, pommels, footrests / foot straps (including foldable variants), push handle, power-assist propeller and more
• Modular system allows extensive individual adaptations

* other sizes and special equipment on request.
