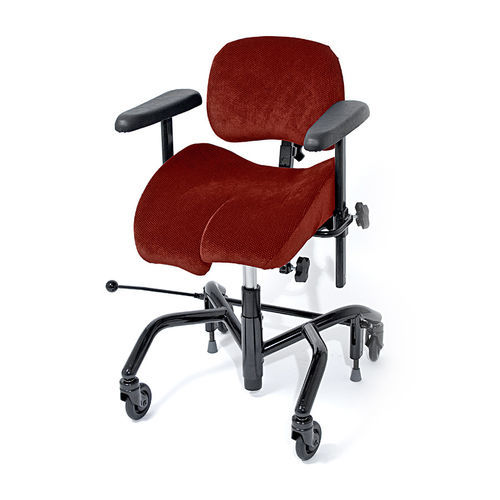

People with reduced mobility chair REAL 9000 PLUS ARTHRODESE (EL)

on castersliftingelectric

Product description
The REAL 9000 PLUS series is a modular seating system that combines ergonomics and functionality. The chair can be configured to meet individual clinical and workplace requirements.

Arthrodesis seat
For restricted movement in the hip or knee joint, the chair is available with an arthrodesis seat cushion composed of two independently adjustable sections to provide an ergonomic, comfortable seating position.

Two-in-one solution
The REAL 9000 PLUS ARTHRODESE integrates an arthrodesis chair and a tripod-style seating option in one product to support users with mobility limitations.

Optional standing aid
Electric seat height adjustment and seat tilt adjustment are available as options (model: REAL 9000 PLUS ARTHRODESE EL) to assist with standing up and sitting down.

Functions / configuration variants

• Seat cushion: arthrodesis cushion with two independently adjustable sections
• Seat height adjustment: gas spring or electric (EL) option
• Seat tilt adjustment: optional by gas spring or electric (multiple adjustment ranges)
• Parking brake: manual (electrically operated optional for EL)

Possible indication areas

• Amputation
• Arthrodesis / joint fusion
• Osteoarthritis, arthritis
• Walking impairment
• Joint inflammation, joint pain
• Hip osteoarthritis
• Hip dysplasia
• Physical disability, handicap, severe disability
• Mobility restrictions in daily life or at the workplace
• Problems with sitting posture or position
• Difficulty when standing up
• Care and therapy

Characteristics / technical specifications

• HMV number: 26.46.02.0015
• REAL 9000 PLUS ARTHRODESE (without EL): seat height adjustment via gas spring; maximum user weight 140 kg
• Seat tilt adjustment (optional, gas spring): +15° forward / -8° backward; alternatively adjustable between +15° and -8° / +8° and -15° / 0° and -23°
• Seat height ranges (gas spring variants): 40 - 60 cm or 32 - 46 cm (measured from floor to lower edge of the seat cushion)
• REAL 9000 PLUS ARTHRODESE EL: electric seat height adjustment; maximum user weight 150 kg
• Seat tilt adjustment (EL or gas spring, optional): +15° forward / -8° backward; adjustable between +15° and -8° / +8° and -15° / 0° and -23°
• Seat height ranges (EL variants): 45 - 73 cm or 37 - 57 cm (measured from floor to lower edge of the seat cushion)
• Seat width: selectable 40, 44 or 48 cm*
• Seat depth: selectable 39, 43 or 48 cm*
• Back cushion width: variable between 27 and 46 cm*
• Back cushion height: variable between 20 and 43 cm*, additional height adjustment options for cushions
• Base / frame centre distance: 48 x 53 cm (W x D); external dimension with standard castors in travel direction approx. 52.5 x 63 cm (W x D)
• With manual parking brake: approx. +6 cm width; for REAL 9000 PLUS ARTHRODESE EL parking brake optionally electric
• Seat tilt mechanism: standard increases seat height by ~1 cm; with 3-range mechanism seat height increases by ~2 cm
• Parking brake: manual (electrically operated optional for EL)
• Push handle: optional
• *Other sizes available on request
