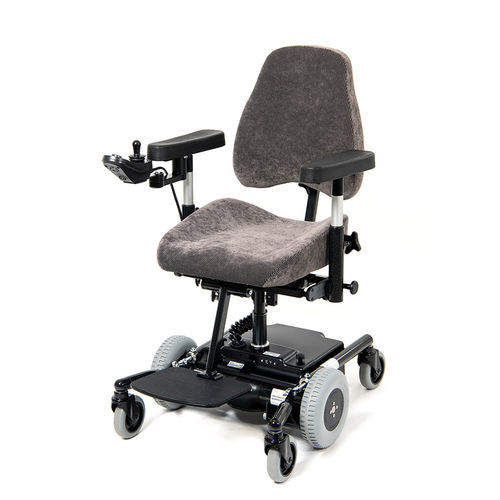

Electric wheelchair REAL 6100 PLUS

indoorheight-adjustablestand-up

Short description
The REAL 6100 PLUS (EL) is a narrow, highly maneuverable indoor electric wheelchair for children and adults. Mid-wheel drive enables zero-radius turns; thresholds up to 3.8 cm are passable. In combination with electric seat tilt adjustment, the chair can function as a standing aid. Medical aid directory number (EL version): 18.99.06.1091.

Comfort & operation
The device provides ergonomic seating, straightforward controls and stable support during transfers and when rising.

Equipment highlights

• Maneuverable mid-wheel drive (180° turning circle: 870 mm)
• Maximum user weight: 135 kg
• Top speed: 4.5 km/h
• Range: approx. 15 km
• Can overcome thresholds up to 3.8 cm
• Unladen weight: 76 kg (incl. battery)
• Battery charging time: approx. 6–8 hours
• Batteries: 2 × FGS 12V 25 Ah, maintenance-free
• Battery chargers: Mentzer 2.5 A or ECB-801 Easy buddy 4A

Seat heights & angles (variants)

• Gas-sprung seat height adjustment: 32–46 cm or 40–60 cm (measured from floor to underside of seat cushion). With standard seat angle mechanism +1 cm; with 3-position adjustment +2 cm.
• Electric seat height adjustment (EL): 47–75 cm or 37–57 cm (measured from floor to underside of seat cushion). With standard seat angle mechanism +1 cm; with 3-position adjustment +2 cm.
• Seat angle adjustment (optional, gas-sprung or electric): e.g. +15° forward / -8° backward; adjustable between +15° / -8°, +8° / -15° or 0° / -23°.

Dimensions & cushion sizes (standard ranges)

• Chassis: 57 × 80 cm (W × D)
• Seat width: between 29 and 48 cm*
• Seat depth: between 32 and 53 cm*
• Backrest width: between 27 and 46 cm*
• Backrest height: between 20 and 43 cm* (adjustable)
• Castors Ø front and rear: 125 mm
• Drive wheels Ø: 210 mm

Programmable functions (adjustable by dealer)

• Forward / reverse speed
• Forward / reverse acceleration
• Forward / reverse braking rate
• Turning speed, turning acceleration, turning brake
• Joystick sensitivity
• Reversed joystick control
• Operation with external joystick

Applications / indications (examples)

• ALS (amyotrophic lateral sclerosis)
• Amputation
• Thalidomide damage
• Walking impairment
• Osteogenesis imperfecta
• Hip osteoarthritis / hip dysplasia
• Dwarfism
• Physical disability, mobility limitations
• MS (multiple sclerosis), neuromuscular diseases
• Problems when standing up or maintaining seating posture

Alternative names

• Indoor electric wheelchair
• Mobile standing aid (in combination with seat tilt)
• Accessible office chair
• Second electric wheelchair

Note
Other sizes and equipment variants are available on request.

Technical specifications

• Max. user weight: 135 kg
• Chassis: 57 × 80 cm (W × D)
• Castors front/rear Ø: 125 mm
• Drive wheels Ø: 210 mm
• Top speed: 4.5 km/h
• Turning circle 180°: 870 mm
• Range: approx. 15 km
• Threshold crossing: up to 3.8 cm
• Unladen weight incl. battery: 76 kg
• Charging time: approx. 6–8 hours
• Batteries: 2 × FGS 12V 25 Ah (maintenance-free)
• Battery charger: Mentzer 2.5 A / ECB-801 Easy buddy 4A
• Seat width: 29–48 cm* / Seat depth: 32–53 cm* / Backrest: width 27–46 cm* / height 20–43 cm*
• Seat heights (gas): 32–46 cm or 40–60 cm; (electric): 47–75 cm or 37–57 cm (measured to underside of seat cushion)
