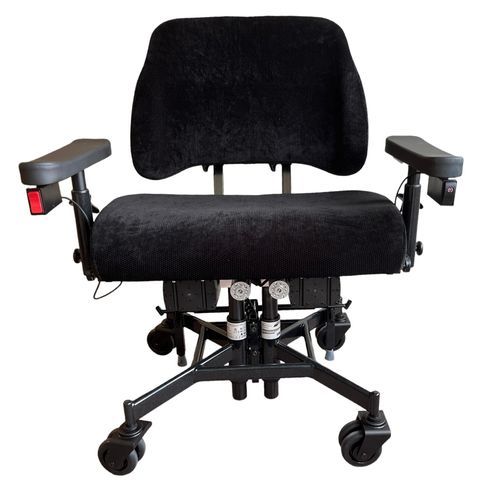

Bariatric chair REAL 9200

with armrestson castersmobile

Overview
The REAL 9200 TWIN XXL is a bariatric therapy chair designed for users with overweight or obesity. It features reinforced construction and selectable height adjustment systems (gas spring or electric). The electric variant (EL) provides extended height range and can assist standing‑up movements. Suitable for home, clinical and institutional settings.

Features

• Adjustable backrest height and depth
• Adjustable armrest width and height with fold‑away function for transfers
• Height adjustment: manual (gas spring) or electric (EL)
• Manual brake lever standard; electric brake optional
• Easy‑rolling castors with reliable parking brakes

Clinical benefits
Stable support and easy adjustment enable safer sitting transfers and reduce strain on joints. Vertical and horizontal mobility, combined with secure braking and simple controls, increase independence for users and facilitate care activities for clinicians and caregivers.

Technical specifications

• Model: REAL 9200 TWIN XXL (EL = electric height adjustment)
• Maximum user weight: Gas spring version 180 kg / Electric version 275 kg
• Seat tilt: none (no seat angle adjustment standard)
• Seat height (measured to underside of seat cushion): Gas spring options: 42–62 cm or 34–48 cm; Electric options: 44–72 cm or 38–58 cm
• Seat cushion widths: 52 / 62 / 72 cm (other sizes on request)
• Seat cushion depths: 40 / 45 / 50 cm
• Backrest widths: 46 / 56 / 66 cm; Backrest height: 43 cm (adjustable)
• Armrests: fold‑away, available lengths 35 / 30 / 25 cm
• Underframe: reinforced X‑frame; frame center spacing 52 x 56 cm (W x D)
• Overall footprint with standard castors (direction of travel): approx. 60.5 x 64 cm (W x D)
• Brake: manual parking brake standard (+ approx. 6 cm width); optional stepless or electric brake (EL model)
• Castor options: XL, SL, extra wide, double XL or SL

Indications

• Obesity / adiposity
• Lipedema
• Mobility impairment and gait limitations
• Physical disability / severe disability
• Postural problems and seating correction
• Difficulty rising due to overweight
• Rheumatic conditions, rheumatoid arthritis, fibromyalgia
• Use in care, rehabilitation and therapy environments

Additional information
The REAL 9200 TWIN XXL is commonly used as a heavy‑duty therapy and transport chair for users over 250 kg in clinical and private settings. Seat widths and other dimensions are available in special sizes on request.
