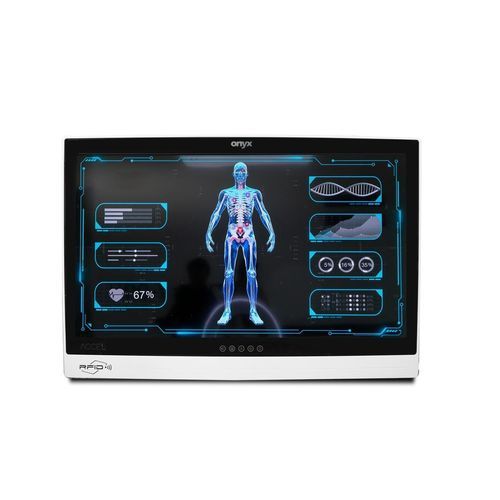

Intel® Core™ i9 medical panel PC ACCEL-A2710

for healthcare facilitiesfor medical imagingall-in-one

Overview
The ACCEL-A2710 is a 27" Medical AI Computer designed for clinical and healthcare workflows. It combines a 27" 4K UHD touch display with a fanless thermal design and Intel® 14th Generation Core™ performance to support imaging, AI inference and clinical workstation tasks.

Key features

• 27" UHD (3840×2160) 500 nits capacitive multi-touch with front IP65 protection
• Fanless cooling with Intel® 14th Gen Core i9-14900T
• 5 programmable smart function keys with dual-color LED status
• Medical LAN isolation support for clinical network security
• PCIe [x4] x1 expansion slot for video-capture cards
• Optional modules: Wi‑Fi 6E, DICOM support, Imprivata RFID reader

Applications

• Medical imaging display and review
• Clinical diagnostic workstations
• Medical AI inference and edge processing
• Point-of-care and infection-control environments (IP65 front)

Brand
Onyx Healthcare Inc.

System & security

• Processor: Intel® 14th Gen Core i9-14900T (fanless design)
• Supported OS: Windows® 10, Windows® 11, Linux®
• System memory: up to 64 GB
• Storage options: M.2 2280 SATA SSD x2; 2.5" SATA HDD; 2.5" SATA SSD x2
• Security: TPM 2.0; optional Imprivata RFID reader

Display

• Size: 27"
• Resolution: UHD 3840×2160
• Touch: capacitive multi-touch
• Brightness: 500 nits
• Viewing angle: 178° H / 178° V

I/O & connectivity

• USB: USB 3.0 Type-C; USB 3.0 Type-A
• Video output: HDMI x1; DisplayPort x1
• Video input: HDMI (configurable)
• Audio: Line-out; Mic-in; 5W x2 speakers
• Ethernet: 2.5G LAN x2; Medical LAN isolation support
• Wireless: Bluetooth 5.3; Wi‑Fi 6E (optional)

Mechanical & environment

• Power: AC-in
• Ingress protection: IP65 front; IPX1 rear
• VESA: 100 × 100 mm
• Operating temperature: 0 °C to 35 °C
• Storage temperature: -20 °C to 60 °C
• Dimensions: 681 × 470 × 100 mm
• Certifications: CE (ITE), CE (Medical), FCC (Medical), FCC (ITE), UL, cUL

Options & expansion

• PCIe [x4] x1 slot for video-capture or specialized cards
• Optional Wi‑Fi 6E module, DICOM support and Imprivata RFID reader for secure authentication
• Programmable smart keys for clinical shortcuts and workflow acceleration

Technical specifications

• Model: ACCEL-A2710
• Processor: Intel® Core i9-14900T (14th Gen)
• Memory: 64 GB (max as configured)
• Storage: M.2 2280 SATA SSD x2; 2.5" SATA HDD; 2.5" SATA SSD x2
• Display: 27" UHD (3840×2160), 500 nits, capacitive multi-touch, front IP65
• Network: Bluetooth 5.3, Wi‑Fi 6E (optional), 2.5G LAN x2
• Expansion: PCIe [x4] x1 for video-capture card
