Intel® Core™ i9 medical panel PC ACCEL-A3220

for medical imagingall-in-oneAI-assisted

Overview

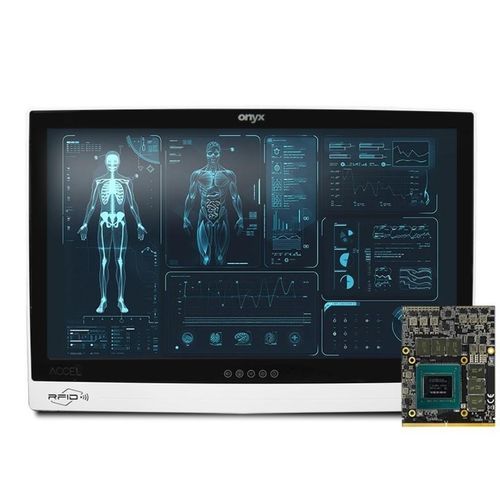

32" 4K medical AI all-in-one PC ACCEL-A3220 designed for clinical imaging and edge AI workloads. Integrates Intel® 14th Gen Core™ i9-14900 CPU and supports NVIDIA MXM RTX Ada modules to accelerate inference at the point of care.

Key Features

• Intel® 14th generation Core™ i9-14900 processor
• Supports NVIDIA MXM modules RTX 5000/3500/2000 Ada for edge AI applications
• 32" UHD 3840×2160 display, 500 nits, capacitive multi-touch, front IP65 for clinical environments
• 5 programmable smart function keys with dual-color LED status indication
• Medical LAN isolation and DICOM support for imaging workflows
• PCI Express [x4] slot for video capture card expansion; optional Wi-Fi 6E and Bluetooth 5.3

Specifications (selected detailed breakdown)
System
Processor: Intel® Core i9-14900
OS Support: Windows® 10; Windows® 11; Linux®
System Memory: 64GB
Security: Trusted Platform Module (TPM) 2.0
Graphics: NVIDIA RTX 2000/3500/5000 Ada (MXM)
Storage: M.2 2280 SATA SSD ×2; 2.5" SATA HDD; 2.5" SATA SSD ×2
Wireless Communication: Bluetooth 5.3; Wi-Fi 6E (optional)
Speaker: 5W ×2
Function Keys: Power On/Off; Touch Screen On/Off; LCD Brightness Up/Down; DICOM support; Video Input Select
Expansion Interface: PCI Express [x4]; M.2 2230 (E key) for WiFi ×1

Display
Display Size: 32"
Touch: Capacitive multi-touch
Resolution: 3840 × 2160 (UHD)
Contrast Ratio: 1000:1
Luminance: 500 nits
View Angle: 178° (H) / 178° (V)

I/O
USB: USB 3.0 (Type-C); USB 3.0 (Type-A)
Video Out: DisplayPort ×1
Serial Port: RS-232 ×2
Audio: Line-out; Mic-in
Ethernet: 2.5G Gigabit LAN ×2
Video Input: HDMI

Mechanical and Environmental
Power Supply: AC-in 100–240V
Degree of Protection: Front IP65; Back IPX1
VESA: 100 mm × 100 mm
Operating Temperature: 0°C–35°C
Storage Temperature: -20°C–60°C
Dimension (WxDxH): 785 × 531 × 100 mm
Certifications: CE (ITE & Medical); FCC (ITE & Medical); UL; cUL

Characteristics / Technical specifications

• Model: ACCEL-A3220
• Brand: Onyx Healthcare Inc.
• Processor: Intel® 14th Gen Core™ i9-14900
• Memory: 64GB
• Graphics Options: NVIDIA RTX 2000/3500/5000 Ada (MXM)
• Primary Display: 32" UHD (3840 × 2160), 500 nits, capacitive multi-touch, front IP65
• Storage Options: M.2 2280 SATA SSD ×2; 2.5" SATA HDD; 2.5" SATA SSD ×2
• Networking: 2.5G Gigabit LAN ×2; optional Wi-Fi 6E; Bluetooth 5.3
• Audio: 5W ×2 speakers; line-out; mic-in
• I/O: USB 3.0 Type-C; USB 3.0 Type-A; DisplayPort ×1; HDMI input; RS-232 ×2
• Expansion: PCIe [x4] slot; M.2 2230 (E key) for WiFi
• Power: AC-in, input power 100–240V
• Environmental: Operating 0°C–35°C; Storage -20°C–60°C
• Protection & Mounting: Front IP65; Back IPX1; VESA 100 × 100 mm
• Dimensions: 785 × 531 × 100 mm
• Certifications: CE (ITE & Medical); FCC (ITE & Medical); UL; cUL
