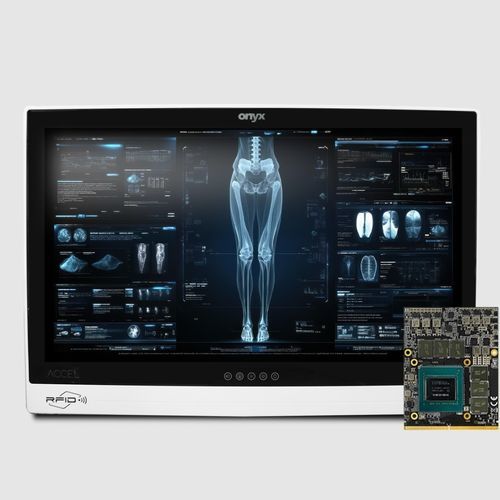

Intel® Core™ i9 medical PC ACCEL-A2720

for medical imagingall-in-oneAI-assisted

Overview
27” 4K Medical AI All-in-One PC with 14th Gen Core I CPU and MXM Graphics

• Intel® 14th generation Core™ i9-14900 Processor
• NVIDIA MXM modules RTX 5000/3500/2000 Ada supported for edge AI applications
• 27" UHD 500-nits display, multi-Touch with front IP65
• 5 Programmable Smart Function Keys with Dual Colors LED Status Indication
• Medical LAN isolation support
• PCI Express [x4] x1 for video capture card expansion
• Optional Wi‑Fi 6E supported and DICOM support

Specifications

System
Processor: Intel® Core i9-14900
OS Support: Windows® 10; Windows® 11; Linux®
System Memory: Up to 64GB
Security: Trusted Platform Module 2.0 (TPM 2.0)
Graphics: NVIDIA RTX 2000 Ada; NVIDIA RTX 3500 Ada; NVIDIA RTX 5000 Ada (MXM modules)
Storage: M.2 2280 SATA SSD x2; 2.5” SATA HDD; 2.5” SATA SSD x2
Wireless Communication: Bluetooth 5.3; Wi‑Fi 6E (optional)
Speaker: 5W x2
Function Key: Video Input Select; DICOM support; Power On/Off; Touch Screen On/Off; LCD Brightness Up/Down

Display
Display Size: 27"
Touch: Capacitive Multi-Touch
Resolution: 3840 x 2160 (UHD)
Contrast Ratio: 1000:1
Luminance (cd/m2): 500 nits
View Angle: 178° (H) / 178° (V)

I/O
USB: USB 3.0 (Type-C); USB 3.0 (Type-A)
Video Out: DisplayPort x1
Serial Port: RS-232 x2
Audio: Line-out; Mic-in
Ethernet: 2.5G Gigabit LAN x2
Video Input: HDMI

Mechanical and Environmental
Power Supply: AC-in
Degree of Protection: IPX1 (rear); IP65 (front)
VESA: 100 mm x 100 mm
Operating Temperature: 0°C ~ 35°C (32°F ~ 95°F)
Dimension (WxDxH): 681 x 470 x 100 mm
Certifications: CE (ITE); CE (Medical); FCC (Medical); FCC (ITE); UL; cUL

Battery Pack / Power
Input Power: 100 ~ 240V

Features / Technical specifications

• Model: ACCEL-A2720
• Platform CPU: Intel® 14th generation Core™ i9-14900
• Graphics Options: NVIDIA RTX 2000/3500/5000 Ada (MXM modules)
• Display: 27" UHD (3840 x 2160), 500 nits, capacitive multi-touch, front IP65
• Memory: Up to 64GB system memory
• Storage Options: M.2 2280 SATA SSD x2; 2.5" SATA HDD; 2.5" SATA SSD x2
• Wireless: Wi‑Fi 6E (optional); Bluetooth 5.3
• Audio: 5W x2 speakers; Line-out; Mic-in
• I/O: USB 3.0 Type-C, USB 3.0 Type-A, DisplayPort x1, HDMI input, RS-232 x2, 2.5G LAN x2
• Expansion: PCIe [x4] x1 for video capture card
• Security: TPM 2.0
• Function Keys: 5 programmable smart keys with dual-color LED, video input select, DICOM support, power on/off, touch on/off, LCD brightness control
• Environmental: Operating 0°C–35°C; IP65 front protection; VESA 100 x 100 mm
• Dimensions: 681 x 470 x 100 mm
• Certifications: CE (ITE & Medical), FCC (ITE & Medical), UL, cUL
