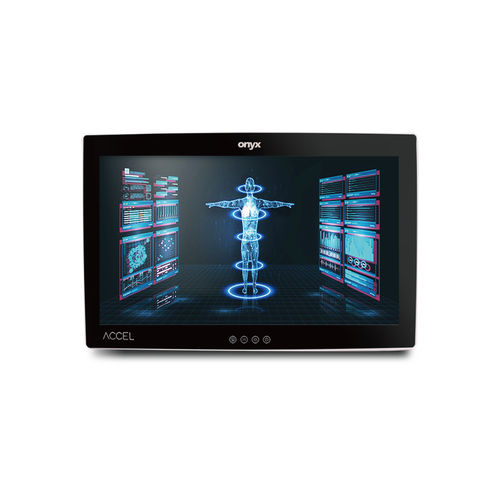

Intel® Core i7 medical panel PC ACCEL-A2401

operating room

● Supports ECC / Non-ECC DDR4 SODIMM up to 64GB ● 4 Programmable Smart Function Keys with Dual Colors LED Status Indication ● LAN/USB(optional)/COM(optional) Medical Isolation ● Dual Slots PCI Express[x16] x1 for High End Graphics Card /GPUAccelerator Card up to 250W ● PCI Express[x4] x1, PCI Express[x1]x1 ● Trusted Platform Module 2.0 ● Remote Management: Intel Active Management Technology ● 100V to 240V AC Input Specifications OS Support Windows® 10 Linux® System Memory 64GB Security Trusted Platform Module 2.0 Storage 2.5” SATA SSD x2 2.5” SATA HHD Wireless Communication Bluetooth 5.1 802.11 ac Speaker 5W x2 Function Key Power On/off Touch Screen On/Off LCD Brightness Up/Down Capacitive Multi-Touch Resolution 1920x 1080(FHD) Contrast Ratio 1000:1 Luminance (cd/m2) 400nits View Angle 178˚(H)/178˚(V) I/O USB USB 3.0 (Type-A) Video Out Display Port 1.4 x1 Serial Port RS-232 x 2 Audio Line-out Mic-in Ethernet Gigabit LAN x2 Mechanical and Environmental Power Supply AC-in Degree of Protection IPX1 in the back IP54 in the back VESA 100mm x 100mm Operating Temperature 0°C ~ 35°C(32°F ~ 95°F) Storage Temperature -20°C ~ 60°C(-4°F ~ 140°F)
